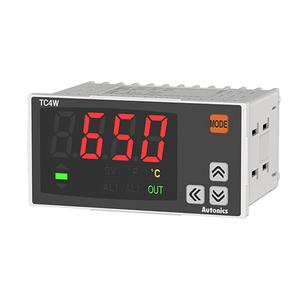

Autonics TC4W-14R Single Display PID Temperature Controllers
The TC4W-14R is an Autonics Single Display PID Temperature Controllers with 100-240VAC supply and relay output. Manufactured by Autonics, this Temperature Controller features 100-240VAC 50/60Hz power supply, Relay control output, and a 4-digit 7-segment LED display. It supports Thermocouple and RTD inputs, ON/OFF, P, PI, PD, PID control methods, proportional band 0.1 to 999.9℃/℉, integral and derivative time up to 9999 sec, DIN W96×H48mm size, approx. 194g weight, and belongs to the TC Series.
| Brand | Autonics |
| Product Type | Temperature Controller |
| Model Number | TC4W-14R |
Autonics TC4W-14R Single Display PID Temperature Controllers - Technical Specifications
| Specification | Value |
|---|---|
| Power supply | 100-240VAC~ 50/60Hz |
| Sampling cycle | 100ms |
| Control output | Relay (250VAC~ 3A) or SSR drive (12VDC) [ON/OFF, phase, cycle] |
| Display method | 4-digit 7-segment LED |
| Control method | ON/OFF, P, PI, PD, PID |
| Proportional band | 0.1 to 999.9℃/℉ |
| Integral time | 0 to 9999 sec |
| Derivative time | 0 to 9999 sec |
| Control period | 0.5 to 120.0 sec |
| Manual reset | 0.0 to 100.0% |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation type | Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: AC power 2kV, AC/DC Power 1kV) |
| Display accuracy | - |
| Input specification | Thermocouple: K(CA), J(IC), L(IC)RTD: DPt100Ω, Cu50Ω |
| Option output | Alarm 1 |
| Display accuracy_RTD | •At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit•Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit |
| Display accuracy_Thermocouple | •At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit•Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit |
| Hysteresis(adjustable sensitivity) | 1 to 100℃/℉(0.1 to 50.0℃/℉) variable |
| Size | DIN W96×H48mm |
| Weight | Approx. 194g(approx. 122g) |
The TC4W-14R Autonics Single Display PID Temperature Controllers is designed for structured temperature regulation in industrial automation systems. It operates with a 100-240VAC power supply, provides Relay control output, and includes a 4-digit 7-segment LED display. The controller supports Thermocouple and RTD inputs with ON/OFF, P, PI, PD, and PID control methods. As part of the TC Series from Autonics, it fits DIN W96×H48mm panel installations.
In industrial environments, the TC4W-14R Autonics Single Display PID Temperature Controllers is used in heating equipment, packaging systems, conveyors, and assembly processes requiring consistent PID temperature control. Adjustable proportional band, integral time, and derivative time support process tuning. Relay output enables switching of connected loads in automation panels.
The TC4W-14R delivers 100ms sampling performance with defined PID parameter configuration for thermal processes. Its multi-input compatibility and standard panel dimensions align with industrial control cabinet requirements. As a TC Series controller from Autonics, it supports dependable temperature regulation across continuous automation operations.
