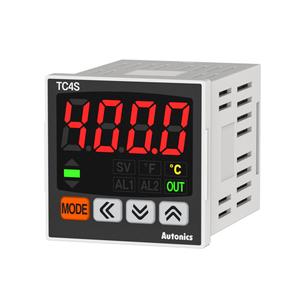

Autonics TC4SP-14R Single Display PID Temperature Controllers
The TC4SP-14R is an Autonics Single Display PID Temperature Controllers with 100-240VAC supply and relay output. Manufactured by Autonics, this Temperature Controller features 100-240VAC 50/60Hz power supply, Relay control output, and a 4-digit 7-segment LED display. It supports Thermocouple and RTD inputs, ON/OFF, P, PI, PD, PID control methods, proportional band 0.1 to 999.9℃/℉, integral and derivative time up to 9999 sec, DIN W48×H48mm size, approx. 123g weight, and belongs to the TC Series.
| Brand | Autonics |
| Product Type | Temperature Controller |
| Model Number | TC4SP-14R |
Autonics TC4SP-14R Single Display PID Temperature Controllers - Technical Specifications
| Specification | Value |
|---|---|
| Power supply | 100-240VAC~ 50/60Hz |
| Sampling cycle | 100ms |
| Control output | Relay (250VAC~ 3A) or SSR drive (12VDC) [ON/OFF, phase, cycle] |
| Display method | 4-digit 7-segment LED |
| Control method | ON/OFF, P, PI, PD, PID |
| Proportional band | 0.1 to 999.9℃/℉ |
| Integral time | 0 to 9999 sec |
| Derivative time | 0 to 9999 sec |
| Control period | 0.5 to 120.0 sec |
| Manual reset | 0.0 to 100.0% |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation type | Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: AC power 2kV, AC/DC Power 1kV) |
| Display accuracy | - |
| Input specification | Thermocouple: K(CA), J(IC), L(IC)RTD: DPt100Ω, Cu50Ω |
| Option output | Alarm 1 |
| Display accuracy_RTD | •At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit•Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit |
| Display accuracy_Thermocouple | •At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit•Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit |
| Hysteresis(adjustable sensitivity) | 1 to 100℃/℉(0.1 to 50.0℃/℉) variable |
| Size | DIN W48×H48mm |
| Weight | Approx. 123g(approx. 76g) |
The TC4SP-14R Autonics Single Display PID Temperature Controllers is structured for panel-mounted temperature regulation in industrial automation systems. It operates with a 100-240VAC power supply, provides Relay control output, and includes a 4-digit 7-segment LED display. The controller supports Thermocouple and RTD inputs with ON/OFF, P, PI, PD, and PID control methods. As part of the TC Series from Autonics, it is designed for DIN W48×H48mm installations.
In industrial applications, the TC4SP-14R Autonics Single Display PID Temperature Controllers is used in packaging equipment, heating systems, conveyors, and assembly lines requiring stable PID temperature control. Adjustable proportional band, integral time, and derivative time enable structured process tuning. Relay output supports switching loads in temperature-regulated automation panels.
The TC4SP-14R delivers consistent 100ms sampling performance and defined PID parameter control for thermal processes. With compact dimensions and multiple sensor input compatibility, it fits standard industrial control panels. As a TC Series controller from Autonics, it supports dependable temperature regulation in continuous automation environments.
