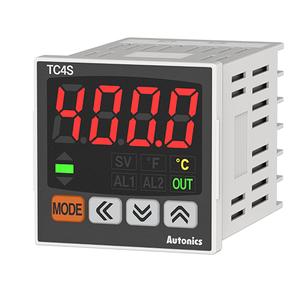

Autonics TC4S-N4R Single Display PID Temperature Controllers
The TC4S-N4R is an Autonics Single Display PID Temperature Controllers with 100-240VAC supply and relay output. Manufactured by Autonics, this Temperature Controller features 100-240VAC 50/60Hz power supply, Relay control output, and a 4-digit 7-segment LED display. It supports Thermocouple and RTD inputs, ON/OFF, P, PI, PD, PID control methods, proportional band 0.1 to 999.9℃/℉, integral and derivative time up to 9999 sec, DIN W48×H48mm size, approx. 141g weight, and belongs to the TC Series.
| Brand | Autonics |
| Product Type | Temperature Controller |
| Model Number | TC4S-N4R |
Autonics TC4S-N4R Single Display PID Temperature Controllers - Technical Specifications
| Specification | Value |
|---|---|
| Power supply | 100-240VAC~ 50/60Hz |
| Sampling cycle | 100ms |
| Control output | Relay (250VAC~ 3A) or SSR drive (12VDC) [ON/OFF, phase, cycle] |
| Display method | 4-digit 7-segment LED |
| Control method | ON/OFF, P, PI, PD, PID |
| Proportional band | 0.1 to 999.9℃/℉ |
| Integral time | 0 to 9999 sec |
| Derivative time | 0 to 9999 sec |
| Control period | 0.5 to 120.0 sec |
| Manual reset | 0.0 to 100.0% |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation type | Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: AC power 2kV, AC/DC Power 1kV) |
| Display accuracy | - |
| Input specification | Thermocouple: K(CA), J(IC), L(IC)RTD: DPt100Ω, Cu50Ω |
| Option output | - |
| Display accuracy_RTD | •At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit•Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit |
| Display accuracy_Thermocouple | •At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit•Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit |
| Hysteresis(adjustable sensitivity) | 1 to 100℃/℉(0.1 to 50.0℃/℉) variable |
| Size | DIN W48×H48mm |
| Weight | Approx. 141g(approx. 94g) |
The TC4S-N4R Autonics Single Display PID Temperature Controllers is structured for panel-based temperature regulation in industrial automation systems. It operates with a 100-240VAC power supply, includes Relay control output, and provides a 4-digit 7-segment LED display. The controller supports Thermocouple and RTD inputs with ON/OFF, P, PI, PD, and PID control methods. As part of the TC Series from Autonics, it is designed for DIN W48×H48mm installations.
In industrial applications, the TC4S-N4R Autonics Single Display PID Temperature Controllers is used in packaging machines, heating systems, conveyors, and assembly processes requiring stable temperature control. Adjustable proportional band, integral time, and derivative time allow structured PID tuning. Relay output supports switching loads in industrial panels where temperature-based control is required.
The TC4S-N4R provides defined sampling performance at 100ms and structured PID configuration for consistent thermal management. With compact DIN dimensions and multi-input compatibility, it fits standard automation panels. As a TC Series controller from Autonics, it supports dependable temperature regulation across continuous industrial processes.
