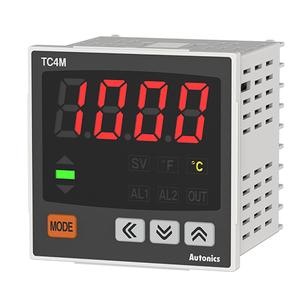

Autonics TC4M-N2N Temperature Controller
The Autonics TC4M-N2N Temperature Controller offers ON/OFF, P, PI, PD, PID control method, 24VAC~ 50/60Hz, 24-48VDC power supply, Indicator, DIN W72×H72mm. Manufactured by Autonics under the Autonics Temperature Controller category, this model belongs to the TC Series.
| Brand | Autonics |
| Product Type | Temperature Controller |
| Model Number | TC4M-N2N |
Autonics TC4M-N2N Temperature Controller – Technical Specifications
| Specification | Value |
|---|---|
| Power supply | 24VAC~ 50/60Hz, 24-48VDC |
| Sampling cycle | 100ms |
| Control output | Indicator |
| Display method | 4-digit 7-segment LED |
| Control method | ON/OFF, P, PI, PD, PID |
| Proportional band | 0.1 to 999.9℃/℉ |
| Integral time | 0 to 9999 sec |
| Derivative time | 0 to 9999 sec |
| Control period | 0.5 to 120.0 sec |
| Manual reset | 0.0 to 100.0% |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation type | Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: AC power 2kV, AC/DC Power 1kV) |
| Display accuracy | - |
| Input specification | Thermocouple: K(CA), J(IC), L(IC)RTD: DPt100Ω, Cu50Ω |
| Option output | - |
| Display accuracy_RTD | •At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit•Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit |
| Display accuracy_Thermocouple | •At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit•Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit |
| Hysteresis(adjustable sensitivity) | 1 to 100℃/℉(0.1 to 50.0℃/℉) variable |
| Size | DIN W72×H72mm |
| Weight | Approx. 204g(approx. 133g) |
Mail Us for your needs in Single Display PID Temperature Controllers TC4M-N2N with budget-friendly prices. The Main Technical Parameters of TC4M-N2N include the power supply range of 24VAC~ 50/60Hz, 24-48VDC, ensuring reliable operation across various applications. The controller boasts a sampling cycle of 100ms for precise temperature monitoring and control. It features a control output of Indicator, suitable for versatile control requirements. The control methods include ON/OFF, P, PI, PD, PID, catering to diverse industrial needs. Despite its robust capabilities, the device is lightweight at Approx. 204g(approx. 133g). Operating conditions are optimized for ambient temperatures of -10 to 50℃, storage: -20 to 60℃, with a humidity range of 35 to 85% RH, storage: 35 to 85% RH for both operation and storage. The controller is 4-digit 7-segment LED, ensuring simplicity in design while maintaining high functionality. Customize Your Experience with a Quote for your requirement of Single Display PID Temperature Controllers. Experience the difference with our competitive pricing and superior support over other Suppliers.
