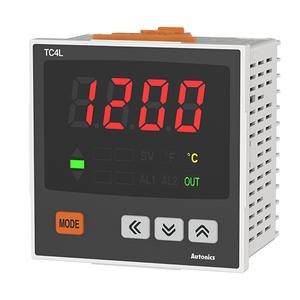

Autonics TC4L-14R 96×96 mm Temperature Controller
The TC4L-14R is an Autonics 96×96 mm Temperature Controller with 100-240VAC supply and PID control modes. Manufactured by Autonics, this Temperature Controller features 100-240VAC 50/60Hz power supply, Relay (250VAC 3A) or SSR drive output, and a 4-digit 7-segment LED display. It supports Thermocouple and RTD inputs, ON/OFF, P, PI, PD, PID control methods, proportional band 0.1 to 999.9℃/℉, integral and derivative time up to 9999 sec, DIN W96×H96mm size, approx. 254g weight, and belongs to the TC Series.
| Brand | Autonics |
| Product Type | Temperature Controller |
| Model Number | TC4L-14R |
Autonics TC4L-14R 96×96 mm Temperature Controller – Technical Specifications
| Specification | Value |
|---|---|
| Power supply | 100-240VAC~ 50/60Hz |
| Sampling cycle | 100ms |
| Control output | Relay (250VAC~ 3A) or SSR drive (12VDC) [ON/OFF, phase, cycle] |
| Display method | 4-digit 7-segment LED |
| Control method | ON/OFF, P, PI, PD, PID |
| Proportional band | 0.1 to 999.9℃/℉ |
| Integral time | 0 to 9999 sec |
| Derivative time | 0 to 9999 sec |
| Control period | 0.5 to 120.0 sec |
| Manual reset | 0.0 to 100.0% |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation type | Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: AC power 2kV, AC/DC Power 1kV) |
| Display accuracy | - |
| Input specification | Thermocouple: K(CA), J(IC), L(IC)RTD: DPt100Ω, Cu50Ω |
| Option output | Alarm 1 |
| Display accuracy_RTD | •At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit•Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit |
| Display accuracy_Thermocouple | •At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit•Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit |
| Hysteresis(adjustable sensitivity) | 1 to 100℃/℉(0.1 to 50.0℃/℉) variable |
| Size | DIN W96×H96mm |
| Weight | Approx. 254g(approx. 155g) |
The TC4L-14R Autonics 96×96 mm Temperature Controller is structured for temperature regulation in industrial automation systems. It operates with a 100-240VAC power supply, provides Relay (250VAC 3A) or SSR drive output, and includes a 4-digit 7-segment LED display. The controller supports Thermocouple and RTD inputs with ON/OFF, P, PI, PD, and PID control methods. As part of the TC Series from Autonics, it is designed for DIN W96×H96mm panel mounting.
In industrial environments, the TC4L-14R Autonics 96×96 mm Temperature Controller is applied in packaging systems, heating processes, conveyors, and assembly lines. Adjustable proportional band, integral time, and derivative time settings enable stable temperature response. The selectable relay or SSR output allows compatibility with various industrial load types.
The TC4L-14R supports structured PID parameter configuration and 100ms sampling performance for controlled thermal processes. With defined electrical ratings and panel dimensions, it aligns with industrial control requirements. As a TC Series controller from Autonics, it provides dependable temperature management for continuous automation applications.
