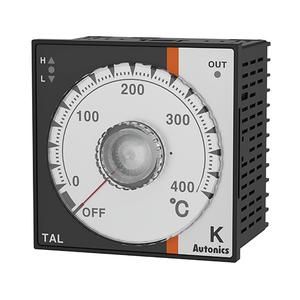

Autonics TAL-B4SK4C Temperature Controller
The Autonics TAL-B4SK4C Temperature Controller offers ON/OFF controlPID control control method, 100-240VAC~ 50/60Hz power supply, SSR drive(12VDC @(=)) [ON/OFF], DIN W96×H96mm. Manufactured by Autonics under the Autonics Temperature Controller category, this model belongs to the TA Series.
| Brand | Autonics |
| Product Type | Temperature Controller |
| Model Number | TAL-B4SK4C |
Autonics TAL-B4SK4C Temperature Controller – Technical Specifications
| Specification | Value |
|---|---|
| Power supply | 100-240VAC~ 50/60Hz |
| Sampling cycle | 100ms |
| Control output | SSR drive(12VDC @(=)) [ON/OFF] |
| Display method | Non-display |
| Control method | ON/OFF controlPID control |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation type | Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 2kV) |
| Input specification | Thermocouple: K(CA) |
| Size | DIN W96×H96mm |
| Temperature unit | ℃ |
| Setting range | 0 to 400 |
| Setting type | Dial setting |
| Setting accuracy | F.S. ±2%(room temperature 23℃±5℃) |
| Weight | Approx. 232g(approx. 147g) |
Talk to Our Engineer for Analog Non-Indicating PID Controller TAL-B4SK4C with exclusive offers. Core System Specifications of TAL-B4SK4C are the power supply range of 100-240VAC~ 50/60Hz, ensuring reliable operation across various applications. The controller boasts a sampling cycle of 100ms for precise temperature monitoring and control. It features a control output of SSR drive(12VDC @(=)) [ON/OFF], suitable for versatile control requirements. The control methods include ON/OFF controlPID control, catering to diverse industrial needs. Despite its robust capabilities, the device is lightweight at Approx. 232g(approx. 147g). Operating conditions are optimized for ambient temperatures of -10 to 50℃, storage: -20 to 60℃, with a humidity range of 35 to 85% RH, storage: 35 to 85% RH for both operation and storage. The controller is Non-display, ensuring simplicity in design while maintaining high functionality. Don't Miss Out on a Quote for your requirement of Analog Non-Indicating PID Controller. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
