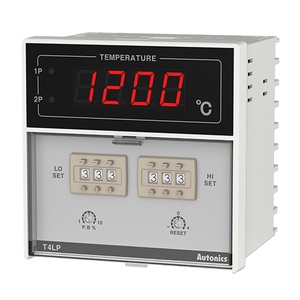

Autonics T4LP-B4SP2C-N Temperature Controller
The Autonics T4LP-B4SP2C-N Temperature Controller offers 4-digit 7-segment LED display method, 100ms sampling cycle, 100-240VAC~ 50/60Hz power supply, SSR drive(12VDC) [ON/OFF] output. Manufactured by Autonics under the Autonics Temperature Controller category, this model belongs to the Autonics T4 Series.
| Brand | Autonics |
| Product Type | Temperature Controller |
| Model Number | T4LP-B4SP2C-N |
Autonics T4LP-B4SP2C-N Temperature Controller – Technical Specifications
| Specification | Value |
|---|---|
| Display method | 4-digit 7-segment LED |
| Input specification | RTD: DPt100Ω |
| Sampling cycle | 100ms |
| Control output | SSR drive(12VDC) [ON/OFF] |
| Power supply | 100-240VAC~ 50/60Hz |
| Display accuracy_RTD | •At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit•Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit |
| Control method | ON/OFF control, P control |
| Setting range | 0 to 200℃, 0 to 200.0℃ |
| Alarm/Sub/Dual output | Dual output |
| Hysteresis(adjustable sensitivity) | F.S. 0.2 to 3% variable |
| Proportional band | F.S. 1 to 10% variable |
| Proportional cycle | 20 sec |
| RESET range | F.S. -3 to 3% variable |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 310g(approx. 222g) |
