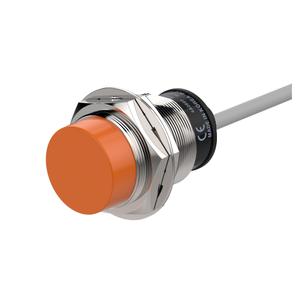

Autonics PR30-15DP2 Cylindrical Inductive Proximity Sensor
The PR30-15DP2 Autonics Cylindrical Inductive Proximity Sensors provide 15mm sensing distance, PNP normally closed output, and M30 cylindrical design. Manufactured by Autonics, this Autonics Proximity Sensor operates on 12-24VDC 3-wire supply, features IP67 protection, 200Hz response frequency, non-flush installation, and belongs to the PR Series for industrial automation applications.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PR30-15DP2 |
Autonics PR30-15DP2 Cylindrical Inductive Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M30 |
| Sensing distance | 15mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 45×45×1mm(iron) |
| Current specification | Current consumption: Max. 10mA |
| Control output | PNP Normally Closed |
| Wire type and power | DC 3-wire type 12-24VDC @(=) |
| Installation | Non-flush |
| Cable Standard/material | Standard cable |
| Body length | Standard type |
| Residual voltage | Max. 1.5V |
| Environment_Ambient temperature | -25 to 70℃, storage: -30 to 80℃ |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67(IEC standard) |
| Material | Case/Nut: Nikel plated Brass, (connector case of DIA. of sensing side Ø 8 mm: SUS303),washer: Nikel plated Iron, sensing side: polybutylene terephthalate,standard cable (black): polyvinyl chloride (PVC),oil resistant cable (gray): oil resistant polyvinyl chloride (PVC) |
| Response frequency | 200Hz |
| Weight | Approx. 207g(approx. 170g) |
The Autonics PR30-15DP2 Cylindrical Inductive Proximity Sensors is designed for industrial automation applications requiring stable sensing performance. This model offers 15mm sensing distance, PNP normally closed output, and operates on a 12-24VDC supply for consistent signal output. It belongs to the PR Series, ensuring compatibility with industrial systems. With IP67 protection, the sensor maintains reliable operation in environments exposed to dust and moisture.
The Autonics PR30-15DP2 proximity sensor is used in conveyor systems, packaging machines, assembly lines, and automated processes. Its inductive sensing method enables non-contact detection of metallic objects, reducing wear and maintenance. The 200Hz response frequency supports moderate-speed operations. Non-flush installation allows extended sensing range while maintaining consistent detection performance, making it suitable for continuous industrial use.
The PR30-15DP2 Autonics Cylindrical Inductive Proximity Sensors combines M30 cylindrical housing, 15mm sensing distance, and PNP normally closed configuration to meet industrial automation requirements. As part of the PR Series, it aligns with Autonics standards for sensing reliability. The Autonics PR30-15DP2 is suitable for machine builders and maintenance teams requiring dependable sensing performance. Its IP67 protection and DC operation ensure consistent performance across various industrial environments.
