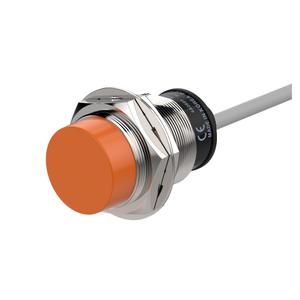

Autonics PR30-15DP-V Proximity Sensor
The PR30-15DP-V Autonics Cylindrical Inductive Proximity Sensors feature 15mm sensing distance, M30 sensing side diameter, and PNP Normally Open output. Autonics manufactures the PR30-15DP-V under Autonics Proximity Sensors for industrial automation sensing applications. The sensor supports DC 3-wire 12-24VDC operation, oil resistant cable construction, and belongs to the PR Series.
| Brand | Autonics |
| Product Type | Proximity Sensor |
| Model Number | PR30-15DP-V |
Autonics PR30-15DP-V Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Sensing side diameter | M30 |
| Sensing distance | 15mm |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Standard sensing target | 45×45×1mm(iron) |
| Current specification | Current consumption: Max. 10mA |
| Control output | PNP Normally Open |
| Wire type and power | DC 3-wire type 12-24VDC @(=) |
| Installation | Non-flush |
| Cable Standard/material | Oil resistant cable |
| Body length | Standard type |
| Residual voltage | Max. 1.5V |
| Environment_Ambient temperature | -25 to 70℃, storage: -30 to 80℃ |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection structure | IP67(IEC standard) |
| Material | Case/Nut: Nikel plated Brass, (connector case of DIA. of sensing side Ø 8 mm: SUS303),washer: Nikel plated Iron, sensing side: polybutylene terephthalate,standard cable (black): polyvinyl chloride (PVC),oil resistant cable (gray): oil resistant polyvinyl chloride (PVC) |
| Response frequency | 200Hz |
| Weight | Approx. 207g(approx. 170g) |
ThePR30-15DP-V is an Autonics Cylindrical Inductive Proximity Sensor developed for industrial automation systems requiring reliable long-range metal sensing performance. The Autonics PR30-15DP-V features a 15mm sensing distance, M30 sensing side diameter, and PNP Normally Open output for industrial sensing operations. This model belongs to the PR Series and supports DC 3-wire 12-24VDC operation. The sensor is commonly used in industrial machinery, production equipment, and automated control systems requiring dependable non-contact detection.
The Autonics PR30-15DP-V proximity sensor is suitable for conveyors, packaging systems, assembly machines, and industrial handling applications operating in demanding automation environments. Its oil resistant cable structure supports sensing applications exposed to lubricants and industrial fluids during machine operation. Industrial users apply the PR30-15DP-V for positioning tasks, object presence monitoring, and movement detection requiring stable switching response. The sensor helps maintain reliable sensing performance across factory automation and production control systems.
PR30-15DP-V from Autonics combines 15mm sensing capability, maximum 10mA current consumption, and PNP Normally Open configuration for industrial sensing applications. The Autonics PR30-15DP-V proximity sensor is part of the PR Series developed for machine sensing and industrial automation systems. Automation engineers and industrial buyers commonly select Autonics proximity sensors for dependable sensing stability, compatibility with industrial DC circuits, and reliable operation across automated production environments.
