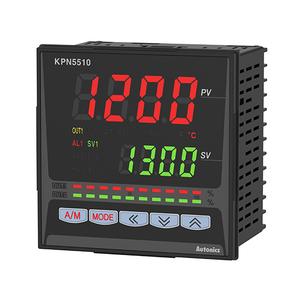

Autonics KPN5517-000 Temperature Controller
The Autonics KPN5517-000 Temperature Controller offers ON/OFF, P, PI, PD, PID control method, 100-240VAC~ 50/60Hz power supply, OUT1: Relay output, OUT2: Selectable Current output, SSR drive output, DIN W96×H96mm. Manufactured by Autonics under the Autonics Temperature Controller category, this model belongs to the KPN Series.
| Brand | Autonics |
| Product Type | Temperature Controller |
| Model Number | KPN5517-000 |
Autonics KPN5517-000 Temperature Controller – Technical Specifications
| Specification | Value |
|---|---|
| Power supply | 100-240VAC~ 50/60Hz |
| Sampling cycle | 50ms |
| Control output | OUT1: Relay output, OUT2: Selectable Current output, SSR drive output |
| Control method | ON/OFF, P, PI, PD, PID |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP65(front panel) |
| Input type_RTD | JPt100Ω, DPt100Ω, DPt50Ω, Cu100Ω, Cu50Ω, Nikel120Ω (6 types) |
| Input type_TC | K, J, E, T, L, N, U, R, S, B, C, G, PLII (13 types) |
| Size | DIN W96×H96mm |
| Input type_Analog | ㆍVoltage: 0-100mV, 0-5 V, 1-5 V, 0-10 V (4 types) ㆍCurrent: 0-20mA, 4-20mA (2 types) |
| The number of control ouptut | 2 output type (Heating&Cooling type) |
| Weight | Approx. 316g(approx. 220g) |
