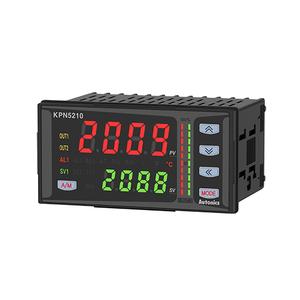

Autonics KPN5211-030 Temperature Controller
The Autonics KPN5211-030 Temperature Controller offers ON/OFF, P, PI, PD, PID control method, 100-240VAC~ 50/60Hz power supply, OUT1: Selectable Current output, SSR drive output, OUT2: Selectable Current output, SSR drive output, DIN W96รH48mm. Manufactured by Autonics under the Autonics Temperature Controller category, this model belongs to the KPN Series.
| Brand | Autonics |
| Product Type | Temperature Controller |
| Model Number | KPN5211-030 |
Autonics KPN5211-030 Temperature Controller โ Technical Specifications
| Specification | Value |
|---|---|
| Power supply | 100-240VAC~ 50/60Hz |
| Sampling cycle | 50ms |
| Control output | OUT1: Selectable Current output, SSR drive output, OUT2: Selectable Current output, SSR drive output |
| Control method | ON/OFF, P, PI, PD, PID |
| Environment_Ambient temperature | -10 to 50โ, storage: -20 to 60โ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP65(front panel) |
| Input type_RTD | JPt100ฮฉ, DPt100ฮฉ, DPt50ฮฉ, Cu100ฮฉ, Cu50ฮฉ, Nikel120ฮฉ (6 types) |
| Input type_TC | K, J, E, T, L, N, U, R, S, B, C, G, PLII (13 types) |
| Size | DIN W96รH48mm |
| Input type_Analog | ใVoltage: 0-100mV, 0-5 V, 1-5 V, 0-10 V (4 types) ใCurrent: 0-20mA, 4-20mA (2 types) |
| The number of control ouptut | 2 output type (Heating&Cooling type) |
| Option input/output | Transmission output+Remote SV |
| Weight | Approx. 230g (approx. 160g) |
