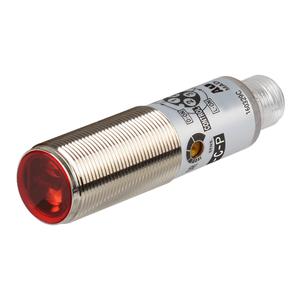

Autonics BRQT3M-PDTA-C Photoelectric Sensor
The Autonics BRQT3M-PDTA-C Photoelectric Sensor offers Retroreflective type(built-in polarizing filter) sensing type, 3m, Red LED(660nm), NPN open collector output, 10-30VDC power supply. Manufactured by Autonics under the Autonics Photoelectric Sensors category, this model belongs to the Autonics BRQ Series.
| Brand | Autonics |
| Product Type | Photoelectric Sensor |
| Model Number | BRQT3M-PDTA-C |
Autonics BRQT3M-PDTA-C Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing type | Retroreflective type(built-in polarizing filter) |
| Sensing distance | 3m |
| Sensing target | Opaque material of min. Γ75mm |
| Response time | Max. 1ms |
| Light source | Red LED(660nm) |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by control wire) |
| Power supply | 10-30VDC |
| Current consumption | Max. 30mA |
| Control output | NPN open collector |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -25 to 60β, storage: -30 to 70β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP67(IEC standard), IP69K(DIN standard) |
| Connection type | Connector type(M12) |
| Material | γCase: stainless steel 316LγLens, Lens cover: polymethyl methacrylate acrylic |
| Weight | Approx. 140g(approx. 30g) |
Send Your Inquiry for Cylindrical Photoelectric Sensors BRQT3M-PDTA-C with cost-effective solutions. Essential Technical Specs of BRQT3M-PDTA-C are the sensor features a diffuse Retroreflective type(built-in polarizing filter) with a reliable sensing distance of 3m, ensuring precise object detection. Powered by an Red LED(660nm), it operates in Light ON/Dark ON(set by control wire) mode, providing optimal efficiency in diverse environments. The response time is an impressive Max. 1ms, enabling quick and accurate detection. This sensor operates on a 10-30VDC power supply and consumes a maximum current of Max. 30mA. It includes an NPN open collector control output for versatile operation. Designed with durability in mind, the protection structure is rated at IP67(IEC standard), IP69K(DIN standard), making it suitable for challenging conditions. The connection type features a robust Connector type(M12) for easy installation. Capture the Best Deal with a Quote for your requirement of Cylindrical Photoelectric Sensors. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
