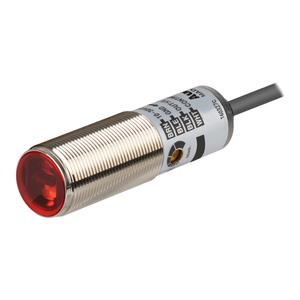

Autonics BRQT400-DDTA Photoelectric Sensor
The Autonics BRQT400-DDTA Photoelectric Sensor offers Diffuse reflective type sensing type, 400mm, Red LED(660nm), NPN open collector output, 10-30VDC power supply. Manufactured by Autonics under the Autonics Photoelectric Sensors category, this model belongs to the Autonics BRQ Series.
| Brand | Autonics |
| Product Type | Photoelectric Sensor |
| Model Number | BRQT400-DDTA |
Autonics BRQT400-DDTA Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing type | Diffuse reflective type |
| Sensing distance | 400mm |
| Sensing target | Opaque, Translucent material |
| Response time | Max. 1ms |
| Light source | Red LED(660nm) |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by control wire) |
| Power supply | 10-30VDC |
| Current consumption | Max. 30mA |
| Control output | NPN open collector |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -25 to 60β, storage: -30 to 70β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP67(IEC standard), IP69K(DIN standard) |
| Connection type | Cable type(Γ4, 2m) |
| Material | γCase: stainless steel 316LγLens, Lens cover: polymethyl methacrylate acrylic |
| Hysteresis(distance) | Max. 20% at rated sensing distance |
| Weight | Approx. 150g(approx. 70g) |
Ask for the Pricing of Cylindrical Photoelectric Sensors BRQT400-DDTA at unbeatable prices. Detailed Specifications of BRQT400-DDTA features the sensor features a diffuse Diffuse reflective type with a reliable sensing distance of 400mm, ensuring precise object detection. Powered by an Red LED(660nm), it operates in Light ON/Dark ON(set by control wire) mode, providing optimal efficiency in diverse environments. The response time is an impressive Max. 1ms, enabling quick and accurate detection. This sensor operates on a 10-30VDC power supply and consumes a maximum current of Max. 30mA. It includes an NPN open collector control output for versatile operation. Designed with durability in mind, the protection structure is rated at IP67(IEC standard), IP69K(DIN standard), making it suitable for challenging conditions. The connection type features a robust Cable type(Γ4, 2m) for easy installation. Now's the Time to Secure a Quote for your requirement of Cylindrical Photoelectric Sensors. We're committed to offering more favorable pricing and more responsive support than other Traders.
