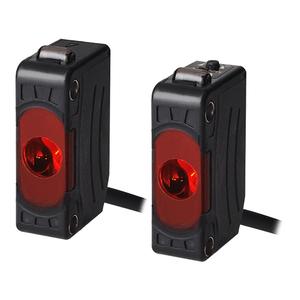

Autonics BJ10M-TDT Photoelectric Sensor
The Autonics BJ10M-TDT Photoelectric Sensor provides a 10m through-beam sensing range using a red LED light source. It offers a 1ms response time, Light ON/Dark ON switching, NPN open collector output, 12β24VDC operation, and a 2m cable connection. Manufactured by Autonics and included under the Autonics brand, this model is featured in the Autonics Photoelectric Sensors range and is part of the Autonics BJ Series.
| Brand | Autonics |
| Product Type | Photoelectric Sensor |
| Model Number | BJ10M-TDT |
Autonics BJ10M-TDT Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Brand | Autonics |
| Product Category | Photoelectric Sensors |
| Product | BJ10M-TDT |
| Sensing type | Through-beam type |
| Sensing distance | 10m |
| Sensing target | Opaque material of min. Γ12mm |
| Response time | Max. 1ms |
| Light source | Red LED(660nm) |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by switch) |
| Power supply | 12-24VDC |
| Current consumption | Emitter/Receiver: Max. 20mA |
| Control output | NPN open collector |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -25 to 55β, storage: -40 to 70β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP65 |
| Connection type | Cable type(Γ3.5, 2m) |
| Material | Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate,Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum,Sleeve: Brass, Ni-plate |
| Accessories_Common | Fixing bracket, M3 Bolts: 4, M3 Nuts: 4, Adjuster driver |
| Weight | Approx. 115g (approx. 90g) |
The Autonics BJ10M-TDT Photoelectric Sensor delivers reliable detection with a 10m through-beam range, red LED source, 1ms response time, and NPN open collector output. As part of the Autonics BJ Series, this Photoelectric Sensor is widely used in industrial automation where long-distance beam alignment and stable sensing are essential.
This model supports conveyors, packaging machines, assembly systems, and automated inspection lines where accurate object interruption detection is required. Its through-beam design ensures dependable performance across long sensing distances, while the Light ON/Dark ON switch provides flexible installation. The compact cable type and 12β24VDC supply allow smooth integration with industrial control equipment.
The Autonics BJ10M-TDT Photoelectric Sensor provides consistent performance through its defined sensing range, responsive switching, and durable output structure. As a member of the Autonics BJ Series, it is suitable for applications demanding reliable long-range detection in continuous production environments. Industrial users can depend on this model for precise, repeatable sensing in demanding automation tasks.
