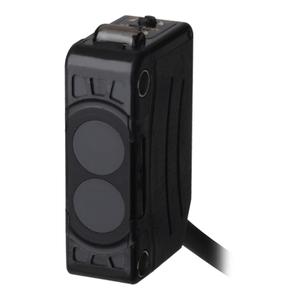

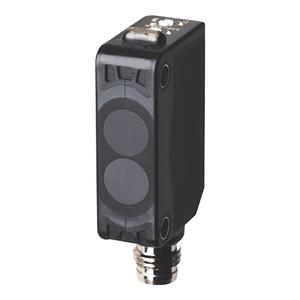

Autonics BJ100-DDT - Compact High Performance Photo Sensors
The Autonics BJ100-DDT Compact High Performance Photo Sensor offers precise 100mm diffuse reflective sensing for reliable object detection in industrial automation.
| Spec | Value |
|---|---|
| Brand | Autonics |
| Product Type | Compact High Performance Photo Sensors |
| Product | BJ100-DDT |
Autonics Compact High Performance Photo Sensors BJ100-DDT Technical Specifications
| Specification | Value |
|---|---|
| Brand | Autonics |
| Product Category | Photoelectric Sensors |
| Product | BJ100-DDT |
| Sensing type | Diffuse reflective type |
| Sensing distance | 100mm |
| Sensing target | Opaque, Translucent material |
| Response time | Max. 1ms |
| Light source | Infrared LED(850nm) |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by switch) |
| Power supply | 12-24VDC @(=) ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 30mA |
| Control output | NPN open collector |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -25 to 55℃, storage: -40 to 70℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP65 |
| Connection type | Cable type(Ø3.5, 2m) |
| Material | Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate,Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum,Sleeve: Brass, Ni-plate |
| Accessories_Common | Fixing bracket, M3 Bolts: 2, M3 Nuts: 2, Adjuster driver |
| Hysteresis(distance) | Max. 20% of sensing distance |
| Weight | Approx. 70g (approx. 45g) |
🛠️ Get Quotes Instantly from Autonics Vendors
The Autonics BJ100-DDT uses a diffuse reflective sensing type to detect opaque and translucent objects within a 100mm range. This ensures stable detection even in demanding production environments.
It features an 850nm infrared LED light source with a 1ms maximum response time, supporting high-speed operations. A built-in sensitivity adjuster and Light ON/Dark ON modes offer flexible setup options.
Operating on 12–24VDC with an NPN open collector output, the BJ100-DDT integrates easily with PLC systems. The IP65 polycarbonate body resists dust and water jets. More at Autonics brand page or see Photoelectric Sensors.
The Autonics BJ100-DDT is ideal for conveyor part detection, feeder counting, packaging lines, and small assembly stations. Its compact form suits tight installations, while durable construction ensures long service life with minimal maintenance.
