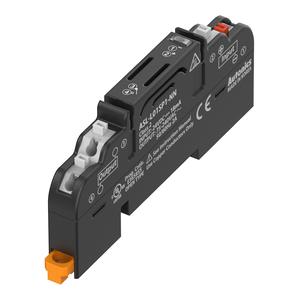

Autonics ASL-L04SP0-UY I/O Terminal Block
The Autonics ASL-L04SP0-UY I/O Terminal Blocks offers 24VDC Β±10% voltage, Screwless terminal type, 5.0mm Terminal pitch, Blue LED indicator. Manufactured by Autonics under the Autonics I/O Terminal Blocks category, this model belongs to the Autonics ASS Series.
| Brand | Autonics |
| Product Type | I/O Terminal Blocks |
| Model Number | ASL-L04SP0-UY |
Autonics ASL-L04SP0-UY I/O Terminal Block β Technical Specifications
| Specification | Value |
|---|---|
| Applied SSR | AQG12124(Panasonic) |
| Rated voltage | 24VDC Β±10% |
| Current consumption | β€ 18mA |
| Terminal type | Screwless |
| Terminal pitch | 5.0mm |
| Indicator | Blue LED |
| Applicable cable_Solid wire | Γ0.6 to Γ1.25mm(60β only) |
| Applicable cable_Stranded wire | AWG22-16(0.30 to 1.25mmΒ²)(60β only) |
| Rated load voltage & current | 75-240VAC~ 50/60Hz 1A |
| Insulation resistance | β₯1,000Mβ¦ (at 500VDC megger) |
| Dielectric strength_Between coil-contacts | 2,500VAC 50/60Hz for 1 minute |
| Dielectric strength_Between same contacts | 300VAC 50/60Hz for 1 minute |
| Accessories | Jumper bar: 1, Ejector: 1 |
| Protection structure | IP20(IEC standard) |
| Environment_Ambient temperature | -15 to 55β, storage: -25 to 65β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Terminal block: Polyamide 66, Conducting plate: Brass, CASE&BASE: Poly phenylene sulfide |
| Weight | Approx. 122g(approx. 69g) |
Ask for the Pricing of Autonics Solid State Relay Terminal Blocks ASL-L04SP0-UY at unbeatable prices. Detailed Specifications of ASL-L04SP0-UY features 24VDC Β±10% rated voltage, ensuring stable and efficient operation. The current consumption is β€ 18mA, optimizing energy efficiency. It features a Screwless type terminal with an 5.0mm terminal pitch, providing secure and reliable connections.
With β₯1,000Mβ¦ (at 500VDC megger) insulation resistance and dielectric strength of 2,500VAC 50/60Hz for 1 minute between coil-contacts and 300VAC 50/60Hz for 1 minute between the same contacts, this relay guarantees high electrical safety. It operates within an ambient temperature range of -15 to 55β, storage: -25 to 65β and humidity levels of 35 to 85% RH, storage: 35 to 85% RH, ensuring durability in industrial environments.
Constructed with Terminal block: Polyamide 66, Conducting plate: Brass, CASE&BASE: Poly phenylene sulfide brass terminal pins, it is designed for longevity. With an approximate weight of Approx. 122g(approx. 69g), it offers a robust yet lightweight design. Now's the Time to Secure a Quote for your requirement of Solid State Relay Terminal Blocks. We're committed to offering more favorable pricing and more responsive support than other Traders.
