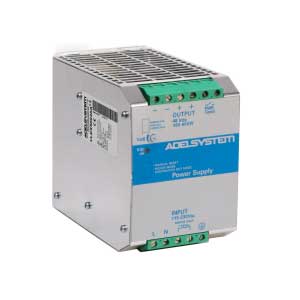

FLEX50048A - Adel system 48VDC Power Supply

Technical Specifications of Adel system 48VDC Power Supply FLEX50048A:
Spec | Value |
---|---|
Brand | DIN Rail Mountable |
Product Type | SMPS(Switch Mode Power Supply) |
Product | FLEX50048A |
Adel system 48VDC Power Supply FLEX50048A Technical Specifications:
Specification | Value |
---|---|
Mounting | DIN Rail Mountable |
Input Voltage | 115-230Vac |
Output Voltage | 48Vdc |
Adjustment range (Vadj) | 41 – 55 Vdc |
Output Current | 12A |
Power continuity | from 480 to 600W |
Maximum current Short Circuit (Icc) | - |
Hold-up Time | Typ. 20 msec |
Residual Ripple | ≤ 80 mVpp |
Efficiency | ≥ 92 % |
Over temperature Protection | Yes. Shut-down output and automatic restart. |
Short-circuit protection | 1° Manual Reset 2° Hiccup Mode 3° Continuous Out Mode |
Over Load protection | Yes |
Over Voltage Output protection | Yes (typ. 72 Vdc) |
Parallel connection | Yes. “Easy Parallel” |
Ambient Temperature operation | -25 up to +70 °C (>60°derating 2.5% °C) |
Protection Class | I with PE connected |
Dimension (WxHxD) | 85x120x140 mm |
Weight | 1.2 kg approx |
Warranty | 3 Year |
The Adel System FLEX50048A operates across a 115–230VAC input range and provides a regulated 48VDC output adjustable between 41–55VDC. It delivers up to 12A of current and supplies continuous power in the range of 480 to 600W, making it suitable for powering heavy-duty industrial components and communication infrastructure. With a typical hold-up time of 20 msec and residual ripple ≤ 80 mVpp, it ensures clean, uninterrupted output even under fluctuating load conditions.
Designed for efficiency, the unit offers a high performance of ≥ 92%, minimizing power loss and heat generation. Built-in safety mechanisms include over-temperature shutdown with auto-restart, overload protection, over-voltage output protection (typ. 72VDC), and a three-mode short-circuit protection system: manual reset, hiccup mode, and continuous output. The Easy Parallel feature enables scalable current delivery or system redundancy, making it a flexible choice for mission-critical setups.
Operating within a temperature range of -25°C to +70°C (with derating beyond 60°C at 2.5% per °C), this DIN rail SMPS is housed in a rugged Class I enclosure with PE connection. It measures 85x120x140 mm and weighs approximately 1.2 kg. Backed by a 3-year warranty, the Adel System FLEX50048A Power Supply is trusted by engineers for its durability, performance, and safety.
Adel System FLEX50048A Power Supply is ideal for powering industrial routers, vision systems, distributed I/O modules, and 48VDC actuators that require high current and stable output. It is widely used in smart manufacturing panels, energy storage systems, industrial communication racks, and building automation control units.
Thanks to its superior efficiency, scalable architecture, and smart protection features, this unit is ideal for projects demanding long-term reliability and fail-safe operation. System integrators and OEMs value its easy parallelization and clean electrical profile, which simplify design and support compliance with safety standards.
If you're designing high-current 48VDC power circuits, the Adel System FLEX50048A Power Supply provides an optimal balance of performance, size, and protection.
