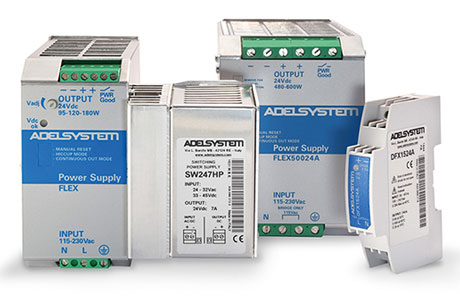

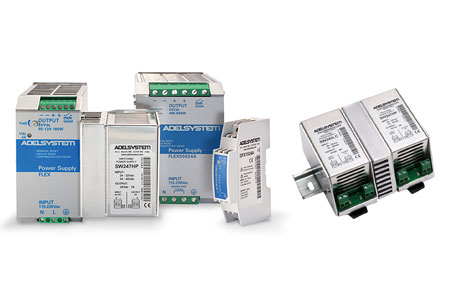

Adel System Power Supply | FLEX & DFLEX Power Supplies

Adel System Power Supply offer reliable and versatile solutions for industrial applications. At IndMALL Automation, we provide these power supplies to meet your diverse needs. The Flex series includes protective functions like Hiccup Mode and operates efficiently at 40, 50, and 60°C. It supports universal input from 230-400-500 Vac and mounts easily on DIN rails.

The DFLEX series features universal input voltage from 85 to 305 Vac, high insulation voltage, and adjustable DC output. It supports high capacitive load startup and series connection for up to 4 units. The SW series offers fixed output voltages of 5, 12, and 24 Vdc with compact dimensions and a 0 to 50°C operating range. The PFAL series provides adjustable output and a wide current range, designed for space-saving installations and flexible applications.

Adel System Power Supply: Flex

Protective Functions: Includes Hiccup Mode, Fold Back, and Restart after Main.
Wide Temperature Range: Operates efficiently in temperatures of 40, 50, and 60°C.
Universal Input: Supports 230-400-500 Vac, suitable for various applications.
DIN Rail Mounting: Easily mounts on DIN rails for convenience.
Compact Size: Designed to save space in installations.
Output Voltage Options: Available in 5, 12, 24, and 48 Vdc.
Current Output: Supports various direct current outputs for 1-phase, 2-phase, and 3-phase.

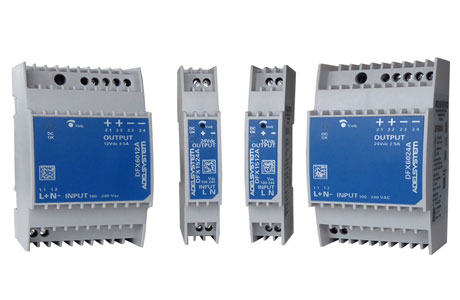

Adel Power Supply: DFLEX

Universal Input Voltage: Supports 85 – 305 Vac.
High Insulation Voltage: 4000 Vac between input and output.
Adjustable DC Output Voltage: Adjustable via trimmer for flexibility.
High Capacitive Load Startup: Supports up to 30,000 μF.
Series Connection: Up to 4 units can be connected in series.
LED Indicators: Green LED for load output voltage status.
Temperature Performance: Supplies current without derating up to +55°C.
Power Boost Capability: DFX15W reaches over 20W; DFX60W up to 72W.

Adelsystem Power Supply: SW

Input Rated Voltage: 24 Vac, 24 Vdc, 48 Vdc.
Output Voltage Options: 5 Vdc, 12 Vdc, 24 Vdc.
Output Current: Available in 3 A, 5 A, and 7 A.
Non-Adjustable Output: Fixed output voltage for stability.
Compact Dimensions: Designed for space-saving installations.
Operating Temperature: Suitable for 0 – 50° C environments.

Power Supply Adel System: PFAL

Input Rated Voltage: 24 Vac, 24 Vdc, 48 Vdc.
Output Voltage Options: 5 Vdc, 12 Vdc, 24 Vdc.
Output Current Range: 0.8 to 20 A.
Adjustable Output: ±10% to ±90% for flexible application.
Compact Design: Extremely compact dimensions for space-saving installations.
Operating Temperature: Suitable for 0 – 50° C environments.

Adel System Power Supplies provides reliable solutions for various industrial applications. IndMALL Automation offers these units to meet your power needs. The Flex series supports 1, 2, and 3-phase inputs, with a wide temperature range of -25 to 70°C. These units feature short-circuit protections like Hiccup Mode and Fold Back. The DFLEX series, ideal for building automation, has a voltage range of 90 to 305 VAC and flexible mounting options. The SW series offers high efficiency and compact size, perfect for space-saving installations. The PFAL series supports output currents up to 20A and ensures stable voltage, with serial and parallel connection capabilities. These units are DIN rail mountable and provide robust performance with overload protection. Check out our Adel System Power Supply regular moving models for more information.

Frequently Asked Questions

What is AC power supply system?

An AC power supply system provides alternating current (AC) power to a load. It converts input power, which can be AC or DC, to the required AC output. This conversion ensures compatibility with the device’s power requirements. AC power supplies are crucial for devices needing specific AC voltage and frequency. They are used in various applications, from household electronics to industrial machinery. The system ensures the stable and efficient operation of these devices. By converting and regulating power, it protects equipment from power inconsistencies. Thus, an AC power supply system is essential for reliable and safe power delivery.

What is 5VDC power supply?

A 5VDC power supply provides a 5-volt direct current output. It is one of the most common power supplies used today. This power supply converts an AC input, typically 50VAC or 240VAC, to a stable 5VDC output. Transformers, diodes, and transistors are used in the conversion process. 5VDC power supplies are widely used in electronics, powering devices like microcontrollers, sensors, and USB-powered gadgets. They ensure a consistent and reliable power source for various applications. This makes them essential in both consumer electronics and industrial equipment.

How to check AC/DC power supply?

To check an AC/DC power supply, follow these steps:

Plug your power supply into an AC outlet.
Turn on your multimeter and set it to read DC voltage.
Take the red (positive) probe from your multimeter.
Insert the red probe into the end of the power supply plug.
Touch the black (negative) probe to the outer part of the plug.
Read the voltage displayed on the multimeter.
Compare the reading to the expected output voltage.
Ensure the measured voltage matches the power supply’s rated output.
