Wika Thermocouples | Wika Multipoint Thermocouple

:contentReference[oaicite:0]{index=0} thermocouples are temperature sensing devices used to measure process temperatures across wide industrial operating ranges reliably. They function by generating a thermoelectric voltage at the junction of two dissimilar metals, where the voltage varies predictably with temperature and is interpreted by control or monitoring systems for continuous thermal measurement. Selection is based on thermocouple type, temperature range, accuracy class, sheath material, junction type, response time, insulation, mounting configuration, environmental conditions, and compatibility with instrumentation standards for industrial temperature measurement. Wika thermocouples are thermoelectric temperature sensing assemblies, probe-based or surface-mounted in structure, classified by metal pair type and junction configuration, interfacing through millivolt signal outputs for integration into standardized industrial automation and process control architectures.

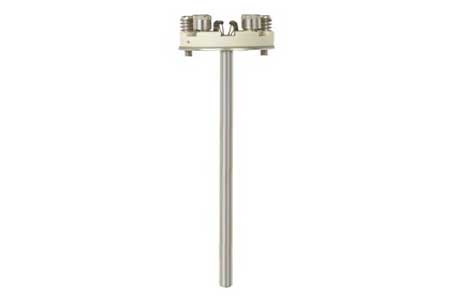

Main Image

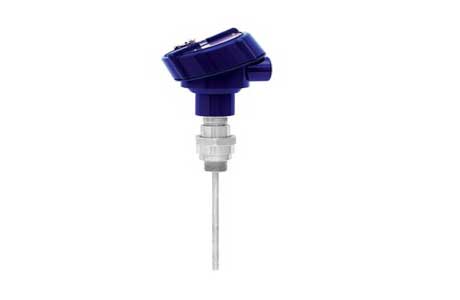

Wika Thermocouples: TC10-0

Wika Thermocouples: TC10-0

  • Applications: Designed for use in chemical and petrochemical industries, machinery, plant and tank measurement, oil and gas industries, power and utilities, and pulp and paper industries.

  • Special Features:
  • Temperature sensor ranges from -40°C to +1,260°C.
  • Suitable for all standard thermowell designs.
  • Features a spring-loaded, replaceable measuring insert.
  • Available in explosion-protected versions.
  • Offers a fixed fitting with a welded measuring insert.

Wika Multipoint Thermocouple: TC10-A

Wika Multipoint Thermocouple: TC10-A

  • Applications: Ideal for servicing in industrial and laboratory environments.

  • Key Features:
  • Temperature range: -40°C to +1,200°C.
  • Constructed from mineral-insulated sheathed measuring cable.
  • Features spring-loaded design for optimal fit.
  • Available in explosion-protected versions.
  • Customization Options:
  • Various measuring insert lengths available.
  • Can be fitted with or without a terminal block.
  • Compatible with transmitters from WIKA’s range.

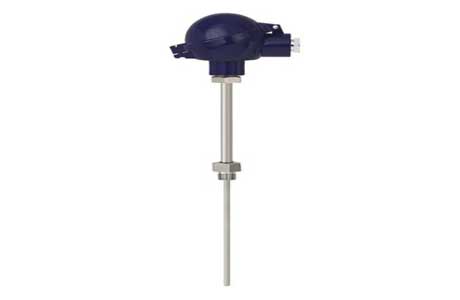

Wika TC10 Thermocouple: Model TC10-B

Wika TC10 Thermocouple: Model TC10-B

  • Applications: Ideal for machine building, energy and power plant technology, chemical, food and beverage industries, and sanitary, heating, and air-conditioning technology.

  • Key Features:
  • Temperature range from -40°C to +1,200°C.
  • Features an integrated fabricated protection tube.
  • Spring-loaded, replaceable measuring insert.
  • Available in explosion-protected versions.
  • Design: Suitable for direct screw-fitting in vessels and pipelines, this thermocouple withstands moderate mechanical load and chemical conditions

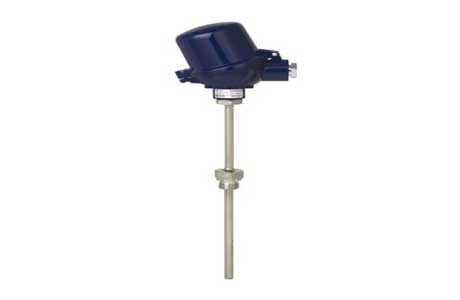

Wika Duplex Thermocouple: Model TC10-C

Wika Duplex Thermocouple: Model TC10-C

  • Applications: Suitable for machine building, plant and vessel construction, energy and power plant technology, chemical industry, food and beverage industry, and sanitary, heating, and air-conditioning technology.

  • Special Features:
  • Temperature range from -40°C to +1,200°C.
  • Features an integrated fabricated protection tube.
  • Spring-loaded, replaceable measuring insert.
  • Available in explosion-protected versions.
  • Design: Designed for direct screw-fitting into process environments, suitable for liquid and gaseous media under moderate mechanical load and normal chemical conditions.

Explore the extensive range of WIKA Thermocouples, including Wika Multipoint Thermocouple, Wika TC10 Thermocouple, Wika Duplex Thermocouple, and Wika Magnetic Thermocouple, tailored for high-precision temperature measurement in industrial environments. These thermocouples are designed to meet the stringent requirements of various industries, offering high accuracy and robust construction for optimal performance under harsh conditions. Suitable for applications in the chemical, power, and processing industries, WIKA’s thermocouples provide reliable and customized temperature monitoring solutions.

Frequently Asked Questions

What is a thermocouple used for?

A thermocouple is a sensor designed to measure temperature accurately. It consists of two different metal wires joined at one end. When heated, this junction generates a voltage that is temperature dependent. This makes thermocouples ideal for applications in various industries, including manufacturing and science, where precise temperature readings are crucial.

Why is thermowell used?

Thermowells are protective fittings used to shield temperature sensors from damage. They safeguard devices like thermocouples, thermistors, and bimetal thermometers. By using thermowells, sensors are protected against excessive pressure, high material velocity, and corrosion. This ensures accurate and reliable temperature measurements in harsh environments.

Is a thermocouple AC or DC?

A thermocouple is an electrical device capable of measuring both AC and DC currents. It functions using two distinct metal wires connected at one end. This configuration allows the thermocouple to effectively measure electrical currents across a variety of applications, making it versatile in its usage.
