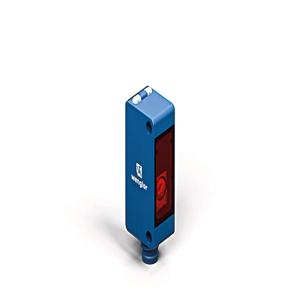

Home Wenglor Photoelectric Sensors Retro-Reflex Sensors P1RK002 Wenglor P1RK002 Photoelectric Sensor The Wenglor P1RK002 Photoelectric Sensor offers 4,000 mm range, 10 ... 30 V DC supply voltage, 1,000 Hz switching frequency, IP67, IP68 degree of protection. Manufactured by Wenglor under the Wenglor Photoelectric Sensor category, this model belongs to the Wenglor Retro Series .
Brand Wenglor Product Type Photoelectric Sensor Model Number P1RK002
Wenglor P1RK002 Photoelectric Sensor – Technical Specifications Specification Value Range 4,000 mm Reference Reflector/Reflector Foil RQ100BA Clear Glass Recognition yes Smallest Recognizable Part see Table 2 Switching Hysteresis < 5 % Light Source Red Light Polarization Filter yes Service Life (T = +25 °C) 100,000 h Max. Ambient Light 10,000 Lux Light Spot Diameter see Table 1 Single-Lens Optic yes Supply Voltage 10 ... 30 V DC Supply Voltage with IO-Link 18 ... 30 V DC Current Consumption (Ub = 24 V) < 40 mA Switching Frequency 1,000 Hz Switching frequency (speed mode) 2,000 Hz Response Time 0.5 ms Response time (speed mode) 0.25 ms Temperature Drift < 5 % Temperature Range -40 ... 60 °C Switching Output Voltage Drop < 2 V Residual Current Switching Output < 50 µA Short Circuit Protection yes Reverse Polarity Protection yes Overload Protection yes Lockable yes Interface IO-Link V1.1 Protection Class III Setting Method Teach-In Housing Material Plastic, PBT
Brass, nickel-plated Degree of Protection IP67, IP68 Connection M12 × 1; 4-pin Weight 31 g MTTFd (EN ISO 13849-1) 1,995.65 a IO-Link yes Output Push-pull
NPN
PNP Circuit Error output
NC
NC+NO
NO Other parameters Off-delay
On-delay
Mode of operation
Dynamic readjustment
Hysteresis
Switching point
Emitted light
Teach-in mode RQ100BA 0 ... 4 m RE18040BA 0 ... 3.5 m RQ84BA 0 ... 4 m RR84BA 0 ... 4 m RE9538BA 0 ... 1.5 m RE6151BM 0 ... 4 m RR50_A 0 ... 4 m RE6040BA 0 ... 3.5 m RE8222BA 0 ... 3 m RE3220BM 0 ... 1.5 m RE6210BM 0 ... 1.5 m RR25_M 0 ... 1.5 m RR25KP 0 ... 0.7 m RR21_M 0 ... 1 m ZRAE02B01 0 ... 1 m ZRME01B01 0 ... 0.6 m ZRME03B01 0 ... 2 m ZRMR02K01 0 ... 1 m ZRMS02_01 0 ... 1 m RF505 0 ... 1 m RF508 0 ... 1 m RF258 0 ... 1 m Teach Mode NT, MT Data Storage yes
