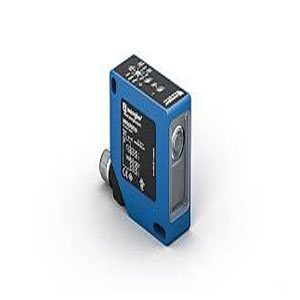

Wenglor P1PW004 Color Sensor
The Wenglor P1PW004 Color Sensor offers 30 ... 40 mm working range, 18 ... 30 V supply voltage, 1024, 50 kHz, PNP NC, PNP NO output. Manufactured by Wenglor under the Wenglor Color Sensor category, this model belongs to the Wenglor P1 Series.
| Brand | Wenglor |
| Product Type | Color Sensor |
| Model Number | P1PW004 |
Wenglor P1PW004 Color Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Working Range | 30 ... 40 mm |
| Working Distance | 35 mm |
| Resolution (Gray Scale) | 1,024 |
| Switching Hysteresis | < 1 % |
| Light Source | White Light |
| Wavelength | 400 ... 700 nm |
| Max. Ambient Light | 10,000 Lux |
| Light Spot Diameter | 1.1 × 3.5 mm |
| Supply Voltage | 18 ... 30 V |
| Current Consumption (Ub = 24 V) | < 50 mA |
| Switching Frequency | 50 kHz |
| Response Time | 13 µs |
| Temperature Range | -25 ... 60 °C |
| Switching Output Voltage Drop | 1.5 V |
| Switching Output/Switching Current | 100mA |
| Setting Method | Teach-In |
| Housing Material | Plastic, ABS |
| Optic Cover | Plastic, PMMA |
| Degree of Protection | IP67 |
| Connection | M12 × 1; 4/5-pin |
| Output | PNP NC, PNP NO |
| Weight | 34g |
Ask for the Pricing of Wenglor 700 nm Wave Length Color Sensor P1PW004 part no: Wenglor 700 nm Wave Length Color Sensor at unbeatable prices. Detailed Specifications of P1PW004, feature are range of 30 ... 40 mm it provides a working distance of 35 mm and a high resolution of 1024 gray scales. With a switching hysteresis of < 1 %, the sensor uses white light across a wavelength of 400 ... 700 nm. It can handle ambient light up to 10,000 Lux and features a light spot diameter of 1.1 × 3.5 mm. The sensor operates on a supply voltage of 18 ... 30 V, consuming < 50 mA, with a switching frequency of 50 kHz and a response time of 13 µs. It functions effectively in temperatures ranging from -25 ... 60 °C, with a switching output voltage drop of 1.5 V and a switching current of 100mA. The device is equipped with a Teach-In setting method, housed in durable Plastic, ABS
with a Plastic, PMMA optic cover, and offers IP67
protection. The connection is via an,M12 × 1; 4/5-pin with PNP NC, PNP NO outputs.It's Time to get a Quote for your requirement of Wenglor 700 nm Wave Length Color Sensor. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
