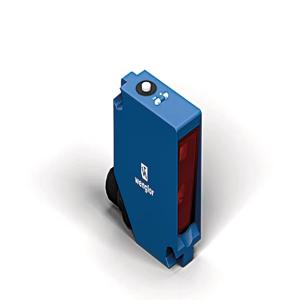

Home Wenglor Photoelectric Sensors Reflex Light Barriers P1PM103 Wenglor P1PM103 Photoelectric Sensor The Wenglor P1PM103 Photoelectric Sensor offers 1,000 mm range, 15 ... 30 V DC supply voltage, 900 Hz switching frequency, IP67, IP68 degree of protection. Manufactured by Wenglor under the Wenglor Photoelectric Sensor category, this model belongs to the Wenglor Reflex Series .
Brand Wenglor Product Type Photoelectric Sensor Model Number P1PM103
Wenglor P1PM103 Photoelectric Sensor – Technical Specifications Specification Value Range 1,000 mm Reference Background White, 90% remission Switching Hysteresis < 5 % Light Source Red Light Service Life (T = +25 °C) 100,000 h Max. Ambient Light 10,000 Lux Light Spot Diameter see Table 1 Two-Lens Optic yes Supply Voltage 15 ... 30 V DC Supply Voltage with IO-Link 18 ... 30 V DC Current Consumption (Ub = 24 V) < 30 mA Switching Frequency 900 Hz Switching Frequency (interference-free mode) 450 Hz Response Time 0.6 ms Response time (interference-free mode) 1.1 ms Temperature Drift < 10 % Temperature Range -25 ... 60 °C Switching Output Voltage Drop < 2 V PNP Switching Output/Switching Current 100 mA Residual Current Switching Output < 50 µA Short Circuit Protection yes Reverse Polarity Protection yes Overload Protection yes Lockable yes Teach Mode moving background Interface IO-Link V1.1 IO-Link Version 1.1 Protection Class III Setting Method Teach-In Housing Material Plastic, ABS/PC Degree of Protection IP67, IP68 Connection M12 × 1; 4-pin Optic Cover Plastic, PMMA Weight 35 g MTTFd (EN ISO 13849-1) 803.65 a PNP NO yes External teach-in input yes IO-Link yes Output Push-pull, NPN, PNP Circuit NC, NC+NO, NO Other parameters Off-delay, On-delay, Dynamic readjustment, Error output, Filter, Hysteresis, Emitted light, Teach mode white (90 %) 0.1 ... 1 m grey (18 %) 0.1 ... 0.7 m black (6 %) 0.1 ... 0.45 m Stainless Steel 0.1 ... 1 m
