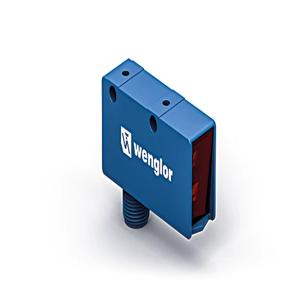

Wenglor P1PH301 Photoelectric Sensor
The Wenglor P1PH301 Photoelectric Sensor offers 500 mm range, 15 ... 30 V DC supply voltage, 800 Hz, IP67, IP68, Push-pull, NPN, PNP output. Manufactured by Wenglor under the Wenglor Photoelectric Sensor category, this model belongs to the Wenglor P1 Series.
| Brand | Wenglor |
| Product type | Photoelectric Sensor |
| Model Number | P1PH301 |
Wenglor P1PH301 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Range | 500 mm |
| Setting Range | 60 ... 500 mm |
| Switching Hysteresis | < 3 % |
| Light Source | Red Light |
| Supply Voltage | 15 ... 30 V DC |
| Supply Voltage with IO-Link | 18 ... 30 V DC |
| Current Consumption (Ub = 24 V) | < 20 mA |
| Switching Frequency | 800 Hz |
| Switching Frequency (interference-free mode) | 500 Hz |
| Response time (interference-free mode) | 1.5 ms |
| Response Time | 1.25 ms |
| Temperature Drift | < 5 % |
| Temperature Range Switching | -40 ... 60 °C |
| Switching Output Voltage Drop | < 2 V |
| Switching Output/Switching Current | 100 mA |
| Setting Method | Potentiometer |
| Housing Material | Plastic, ABS/PC |
| Degree of Protection | IP67, IP68 |
| Connection | M12 × 1; 4-pin |
| Optic Cover | Plastic, PMMA |
| Weight | 33 g |
| Output | Push-pull, NPN, PNP |
| Circuit | NC NO inactive Error output NC+NO |
