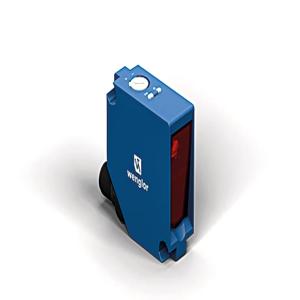

Home Wenglor Photoelectric Sensors Retro-Reflex Sensors P1NL409 Wenglor P1NL409 Photoelectric Sensor The Wenglor P1NL409 Photoelectric Sensor offers 9,500 mm range, 10 ... 30 V DC supply voltage, 5,000 Hz switching frequency, IP67, IP68 degree of protection. Manufactured by Wenglor under the Wenglor Photoelectric Sensor category, this model belongs to the Wenglor Retro Series .
Brand Wenglor Product Type Photoelectric Sensor Model Number P1NL409
Wenglor P1NL409 Photoelectric Sensor – Technical Specifications Specification Value Range 9,500 mm Reference Reflector/Reflector Foil RE6151BM Smallest Recognizable Part see Table 2 Switching Hysteresis < 15 % Light Source Laser collimated (red) Polarization Filter yes Service Life (T = +25 °C) 100,000 h Max. Ambient Light 10,000 Lux Supply Voltage 10 ... 30 V DC Supply Voltage with IO-Link 18 ... 30 V DC Current Consumption (Ub = 24 V) < 20 mA Switching Frequency 5,000 Hz Response Time 0.1 ms Temperature Drift < 10 % Temperature Range -25 ... 60 °C Switching Output Voltage Drop < 2 V Switching Output/Switching Current 100 mA Residual Current Switching Output < 50 µA Short Circuit Protection yes Reverse Polarity Protection yes Overload Protection yes Protection Class III Setting Method Potentiometer Housing Material Plastic, ABS/PC Degree of Protection IP67, IP68 Connection M12 × 1; 4-pin Optic Cover Plastic, PMMA Weight 30 g MTTFd (EN ISO 13849-1) 2,369.59 a
