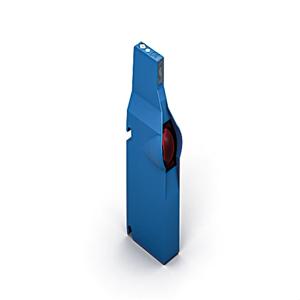

Home Wenglor Photoelectric Sensor Reflex Sensor Series OPT1508 Wenglor OPT1508 Photoelectric Sensor The Wenglor OPT1508 Photoelectric Sensor offers 900 mm range, 860 nm wavelength, 12 ... 30 V DC supply voltage, 100 Hz switching frequency. Manufactured by Wenglor under the Wenglor Photoelectric Sensor category, this model belongs to the Wenglor Reflex Sensor Series .
Brand Wenglor Product Type Reflex Sensor with Background Suppression Model Number OPT1508
Wenglor OPT1508 Photoelectric Sensor โ Technical Specifications Specification Value Range 900 mm Switching Hysteresis < 5 % Light Source Infrared Light Wavelength 860 nm Service Life (T = +25 ยฐC) 100,000 h Risk Group (EN 62471) 1 Max. Ambient Light 90,000 Lux Opening Angle 3 ยฐ Supply Voltage 12 ... 30 V DC Current Consumption Sensor (Ub = 24 V) < 16 mA Switching Frequency 100 Hz Response Time 5 ms Temperature Drift < 5 % Temperature Range -40 ... 60 ยฐC Number of Switching Outputs 2 Switching Output Voltage Drop < 0.9 V PNP Switching Output/Switching Current 200 mA Short Circuit Protection yes Reverse Polarity Protection yes Overload Protection yes Logic no Protection Class III Setting Method Potentiometer Housing Material Plastic, ABS/GF Degree of Protection IP67 Connection M12 ร 1; 4-pin Weight 41 g MTTFd (EN ISO 13849-1) 1,471.4 a PNP NC, PNP NO yes Circuit NC
NC+NO
NO
