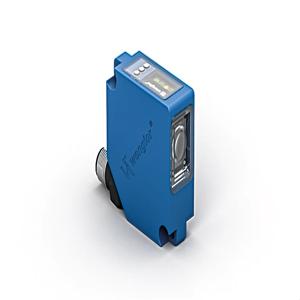

Home Wenglor Color Sensor Color Sensor Series OFP401P0189 Wenglor OFP401P0189 Photoelectric Sensor The Wenglor OFP401P0189 Photoelectric Sensor offers 30 ... 40 mm working range, 10 ... 30 V DC supply voltage, 1.8 kHz switching frequency, M12 × 1; 8-pin connection. Manufactured by Wenglor under the Wenglor Photoelectric Sensor category, this model belongs to the Wenglor Color Sensor Series .
Brand Wenglor Product Type Color Sensor Model Number OFP401P0189
Wenglor OFP401P0189 Photoelectric Sensor – Technical Specifications Specification Value Working Range 30 ... 40 mm Working Distance 35 mm Light Source White Light Service Life (T = +25 °C) 100,000 h Max. Ambient Light 10,000 Lux Light Spot Diameter 3 mm Supply Voltage 10 ... 30 V DC Current Consumption (Ub = 24 V) < 80 mA Switching Frequency 1.8 kHz Response time ~ 1.8/1,000 μs × filter Temperature Range -25 ... 60 °C Number of Switching Outputs 3 Switching Output Voltage Drop 1.5 V PNP Switching Output/Switching Current 100 mA Short Circuit Protection yes Reverse Polarity Protection yes Overload Protection yes Teach Mode FT Interface RS-232 Number of Digital Inputs 2 Protection Class III Setting Method Menu (OLED) Housing Material Plastic, ABS
Plastic, PC Optic Cover Plastic, PMMA Degree of Protection IP68 Connection M12 × 1; 8-pin Weight 44 g MTTFd (EN ISO 13849-1) 425.77 a RS-232 Interface yes Error Output yes Contamination Output yes Push-Pull yes NO yes Output Error Output
Push-pull
NPN
PNP
Contamination Output Circuit NC
NC/NO
NO Other parameters Teach-in mode
