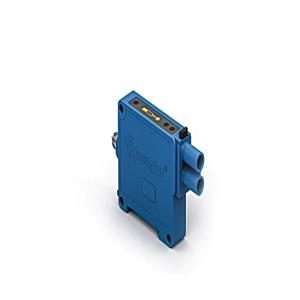

Home Wenglor Fiber-Optic Cable Amplifiers Fiber-Optic Cable Amplifiers Series ODXS936 Wenglor ODXS936 Photoelectric Sensor The Wenglor ODXS936 Photoelectric Sensor offers 18 ... 30 V DC supply voltage, 4 kHz switching frequency, -25 ... 50 °C temperature range, IP65 degree of protection. Manufactured by Wenglor under the Wenglor Photoelectric Sensor category, this model belongs to the Wenglor P1X Series .
Brand Wenglor Product Type Fiber-Optic Cable Amplifiers Model Number ODXS936
Wenglor ODXS936 Photoelectric Sensor – Technical Specifications Specification Value Switching Hysteresis < 15 % Light Source Red Light Service Life (T = +25 °C) 100,000 h Max. Ambient Light 10,000 Lux Supply Voltage 18 ... 30 V DC Current Consumption (Ub = 24 V) < 50 mA Switching Frequency 4 kHz Response Time 125 µs On-/Off-Delay 0 ... 10,000 ms Temperature Drift < 10 % Temperature Range -25 ... 50 °C Switching Output Voltage Drop < 2.5 V Switching Output/Switching Current 100 mA Short Circuit Protection yes Reverse Polarity Protection yes Overload Protection yes Teach Mode NT, MT, ZT, DT, FT, HT, TP Interface IO-Link V1.0 Protection Class III Setting Method Menu (OLED) Housing Material Plastic, ABS
Plastic, PC Degree of Protection IP65 Connection M8 × 1; 4-pin DIN-Rail mounting 35 mm Weight 42 g IO-Link yes Output Push-pull
PNP Circuit NC, NC/NO, NO PNP NO yes
