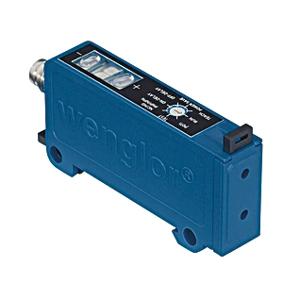

Home Wenglor Fiber-Optic Cable Amplifiers Fiber-Optic Cable Amplifiers Series ODX202P0007 Wenglor ODX202P0007 Photoelectric Sensor The Wenglor ODX202P0007 Photoelectric Sensor offers 10 ... 30 V DC supply voltage, 2 kHz switching frequency, -25 ... 60 °C temperature range, IP65 degree of protection. Manufactured by Wenglor under the Wenglor Photoelectric Sensor category, this model belongs to the Wenglor P1X Series .
Brand Wenglor Product Type Fiber-Optic Cable Amplifiers Model Number ODX202P0007
Wenglor ODX202P0007 Photoelectric Sensor – Technical Specifications Specification Value Switching Hysteresis < 15 % Light Source Red Light Service Life (T = +25 °C) 100,000 h Max. Ambient Light 10,000 Lux Supply Voltage 10 ... 30 V DC Current Consumption (Ub = 24 V) < 40 mA Switching Frequency 2 kHz Response Time 250 µs On-/Off-Delay 0 ... 200 ms Temperature Drift < 10 % Temperature Range -25 ... 60 °C Switching Output Voltage Drop < 2.5 V Switching Output/Switching Current 200 mA Short Circuit Protection yes Reverse Polarity Protection yes Overload Protection yes Teach Mode NT, MT, ZT, DT, TP Protection Class III Setting Method Teach-In Housing Material Plastic, PBT Degree of Protection IP65 Connection M8 × 1; 4-pin DIN-Rail mounting 35 mm Weight 25 g Output Push-pull, NPN, PNP Circuit NC, NC/NO, NC+NO Full Encapsulation yes
