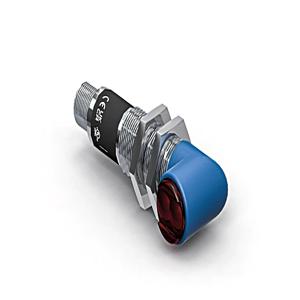

Home Wenglor Photoelectric Sensors Retro-Reflex Sensors LW86NCT3 Wenglor LW86NCT3 Photoelectric Sensor The Wenglor LW86NCT3 Photoelectric Sensor offers 6,000 mm range, 10 ... 30 V DC supply voltage, 2 kHz switching frequency, IP67 degree of protection. Manufactured by Wenglor under the Wenglor Photoelectric Sensor category, this model belongs to the Wenglor Retro Series .
Brand Wenglor Product Type Photoelectric Sensor Model Number LW86NCT3
Wenglor LW86NCT3 Photoelectric Sensor – Technical Specifications Specification Value Range 6,000 mm Reference Reflector/Reflector Foil RQ100BA Switching Hysteresis < 5 % Light Source Red Light Polarization Filter yes Service Life (T = +25 °C) 100,000 h Max. Ambient Light 10,000 Lux Two-Lens Optic yes Supply Voltage 10 ... 30 V DC Current Consumption (Ub = 24 V) < 40 mA Switching Frequency 2 kHz Response Time 250 µs Temperature Drift < 5 % Temperature Range -25 ... 60 °C Switching Output Voltage Drop < 2.5 V Residual Current Switching Output < 50 µA Short Circuit Protection yes Reverse Polarity Protection yes Overload Protection yes Lockable yes Protection Class III Setting Method Teach-In Housing Material Stainless steel, V2A (1.4305 / 303)
Plastic, PBT Degree of Protection IP67 Connection M12 × 1; 4-pin Weight 39 g Circuit NC
NC/NO
NO
