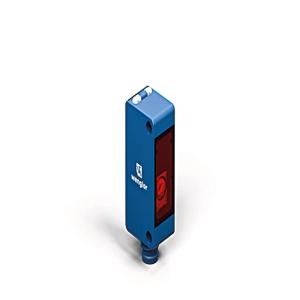

Home Wenglor Photoelectric Sensors Retro-Reflex Sensors KN88PA3 Wenglor KN88PA3 Photoelectric Sensor The Wenglor KN88PA3 Photoelectric Sensor offers 2,600 mm range, 10 ... 30 V DC supply voltage, 2,500 Hz switching frequency, IP67 degree of protection. Manufactured by Wenglor under the Wenglor Photoelectric Sensor category, this model belongs to the Wenglor Retro Series .
Brand Wenglor Product Type Photoelectric Sensor Model Number KN88PA3
Wenglor KN88PA3 Photoelectric Sensor – Technical Specifications Specification Value Range 2,600 mm Reference Reflector/Reflector Foil RQ100BA Clear Glass Recognition yes Switching Hysteresis < 5 % Light Source Red Light Polarization Filter yes Service Life (T = +25 °C) 100,000 h Max. Ambient Light 10,000 Lux Single-Lens Optic yes Supply Voltage 10 ... 30 V DC Current Consumption (Ub = 24 V) < 40 mA Switching Frequency 2,500 Hz Response Time 200 µs Temperature Drift < 3 % Temperature Range -10 ... 60 °C Switching Output Voltage Drop < 2.5 V Residual Current Switching Output < 50 µA Short Circuit Protection yes Reverse Polarity Protection yes Overload Protection yes Protection Class III Setting Method Potentiometer Housing Material Plastic Degree of Protection IP67 Connection M12 × 1; 4-pin Weight 49 g PNP NC, PNP NO yes Circuit NC
NC+NO
NO RQ100BA 0 ... 2.6 m RE18040BA 0 ... 1.4 m RQ84BA 0 ... 2.4 m RR84BA 0 ... 2.3 m RE9538BA 0 ... 0.9 m RE6151BM 0 ... 2.3 m RR50_A 0 ... 2.3 m RE6040BA 0 ... 2.5 m RE8222BA 0 ... 0.95 m RR34_M 0 ... 1.3 m RE3220BM 0 ... 0.9 m RE6210BM 0 ... 0.75 m RR25_M 0 ... 1 m RR25KP 0 ... 0.7 m RR21_M 0 ... 0.75 m ZRAE02B01 0 ... 1.2 m ZRME01B01 0 ... 0.4 m ZRME03B01 0 ... 1 m ZRMR02K01 0 ... 0.5 m ZRMS02_01 0 ... 0.6 m RF505 0 ... 0.8 m RF508 0 ... 0.8 m RF258 0 ... 0.6 m
