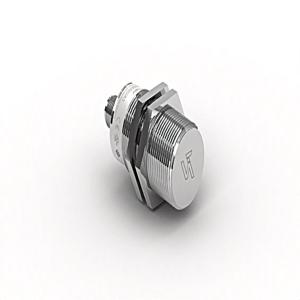

Home Wenglor Inductive Sensor Inductive Series IX150DE65UA3 Wenglor IX150DE65UA3 Inductive Sensor The Wenglor IX150DE65UA3 Inductive Sensor offers 15 mm switching distance, Flush mounting, 10 ... 30 V DC supply voltage, M12 × 1; 4-pin connection. Manufactured by Wenglor under the Wenglor Inductive Sensor category, this model belongs to the Wenglor Inductive Series .
Brand Wenglor Product Type Inductive Sensor Model Number IX150DE65UA3
Wenglor IX150DE65UA3 Inductive Sensor – Technical Specifications Specification Value Switching Distance 15 mm Correction Factors Stainless Steel V2A/CuZn/Al 0,74/0,59/0,52 Mounting Flush Mounting A/B/C/D in mm 0/30/45/0 Mounting A/B/C/D (V2A) in mm 0/30/45/0 Switching Hysteresis < 15 % Supply Voltage 10 ... 30 V DC Current Consumption (Ub = 24 V) < 15 mA Switching Frequency 200 Hz Temperature Drift < 10 % Temperature Range -25 ... 80 °C Switching Output Voltage Drop < 2.5 V Switching Output/Switching Current 400 mA Residual Current Switching Output < 100 µA Short Circuit Protection yes Reverse Polarity Protection yes Overload Protection yes Housing Material Stainless steel, V4A Sensing face Stainless steel, V4A Degree of Protection IP69K
IP68 Connection M12 × 1; 4-pin Pressure Resistance Sensor Area 25 bar Weight 156 g MTTFd (EN ISO 13849-1) 2,206.08 a Packaging unit 1 Piece PNP NC, PNP NO yes Protection Class III Full Encapsulation yes Stock Type X
