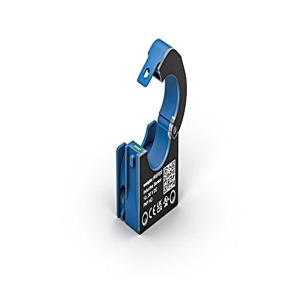

Home Wenglor Inductive Sensor Inductive Series IR5F002 Wenglor IR5F002 Inductive Sensor The Wenglor IR5F002 Inductive Sensor offers 25.1 mm inside diameter, 10 ... 30 V DC supply voltage, M8 × 1; 4-pin connection, PNP, Push-pull, NPN output. Manufactured by Wenglor under the Wenglor Inductive Sensor category, this model belongs to the Wenglor Inductive Series .
Brand Wenglor Product Type Inductive Sensor Model Number IR5F002
Wenglor IR5F002 Inductive Sensor – Technical Specifications Specification Value Inside diameter 25.1 mm Max. tube diameter 25 mm Installation A/Bx/By/C in mm 0/42/100/10 Installation A/Bx/By/C in mm with frequency switching 0/0/0/10 Functional principle Static Smallest recognizable object (Ø) 5 mm* Correction Factors Stainless Steel V2A/CuZn/Al 1/1/2001 Supply Voltage 10 ... 30 V DC Current Consumption (Ub = 24 V) < 25 mA Object speed 0.1 ... 50 m/s Response Time < 300 µs Ready-state delay < 1.5 s Switching Output Voltage Drop 1.5 V Temperature Range 0 ... 60 °C Short Circuit Protection yes Overload Protection yes Reverse Polarity Protection yes Switching Output/Switching Current 100 mA Pulse extension 5 ... 200 ms Interface IO-Link V1.1 IO-Link Version 1.1 Connection M8 × 1; 4-pin Setting Method Potentiometer/IO-Link Hanger opening/closing cycles Max. 100 Degree of Protection IP54 Weight 44 g Scope of delivery 1 × ring sensor incl. soft binder Packaging unit 1 Piece Output PNP, Push-pull, NPN Circuit NO
NC
NC/NO Other parameters Sensitivity
Error indicator
Frequency switching NPN NO yes
