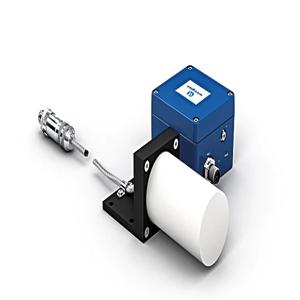

Home Wenglor Inductive Sensor Inductive Series INRT011 Wenglor INRT011 Inductive Sensor The Wenglor INRT011 Inductive Sensor offers 25 mm switching distance, Non-flush mounting, M12 × 1; 4-pin connection. Manufactured by Wenglor under the Wenglor Inductive Sensor category, this model belongs to the Wenglor Inductive Series .
Brand Wenglor Product Type Inductive Sensor Model Number INRT011
Wenglor INRT011 Inductive Sensor – Technical Specifications Specification Value Switching Distance 25 mm Correction Factors Stainless Steel V2A/CuZn/Al 1,27/1,29/1,33 Mounting Non-flush Mounting A/B/C/D in mm 95/200/40/85 Switching Hysteresis < 10 % Supply Voltage 18 ... 30 V DC Current Consumption (Ub = 24 V) < 70 mA Switching Frequency 200 Hz Sensor head temperature range -60 ... 450 °C Number of Switching Outputs 2 Switching Output Voltage Drop < 3.5 V Switching Output/Switching Current 50 mA Residual Current Switching Output < 10 mA Short Circuit Protection yes Reverse Polarity Protection yes Overload Protection yes Protection Class III Sensing face Ceramic Sensor head material Aluminum, anodised Analysis module material Aluminum, powder-coated Degree of protection, sensor head IP60 Connection M12 × 1; 4-pin Cable Length (L) 20 m Cable Jacket Material Stainless steel, V2A (1.4301 / 304) Outer diameter cable 6.6 mm PWIS-free yes Weight 2,600 g PNP NC, PNP NO yes Analysis module temperature range 0 ... 50 °C Degree of protection, analysis module IP67 Service Life 100,000 h
