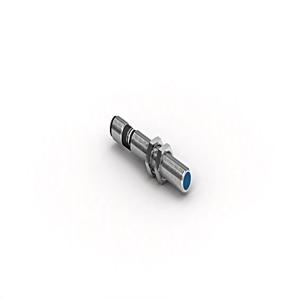

Home Wenglor Inductive Sensor Inductive Sensor Series IL008BE35VB1 Wenglor IL008BE35VB1 Inductive Sensor The Wenglor IL008BE35VB1 Inductive Sensor offers 0.8 mm switching distance, 10 ... 30 V DC supply voltage, -25 ... 80 °C temperature range, M5 × 0,5; 4-pin connection. Manufactured by Wenglor under the Wenglor Inductive Sensor category, this model belongs to the Wenglor IL Series .
Brand Wenglor Product Type Inductive Sensor Model Number IL008BE35VB1
Wenglor IL008BE35VB1 Inductive Sensor – Technical Specifications Specification Value Switching Distance 0.8 mm Correction Factors Stainless Steel V2A/CuZn/Al 0,68/0,45/0,36 Mounting Flush Mounting A/B/C/D in mm 0/5/2,4/0 Switching Hysteresis < 15 % Supply Voltage 10 ... 30 V DC Current Consumption (Ub = 24 V) < 10 mA Switching Frequency 5 kHz Temperature Drift < 10 % Temperature Range -25 ... 80 °C Switching Output Voltage Drop < 1 V Switching Output/Switching Current 100 mA Residual Current Switching Output < 100 µA Short Circuit Protection yes Reverse Polarity Protection yes Overload Protection yes Protection Class III Housing Material Stainless steel, V2A (1.4305 / 303) Sensing face Plastic, PA Full Encapsulation yes Degree of Protection IP67 Connection M5 × 0,5; 4-pin Weight 7 g MTTFd (EN ISO 13849-1) 5,680.48 a Packaging unit 1 Piece PNP NO yes
