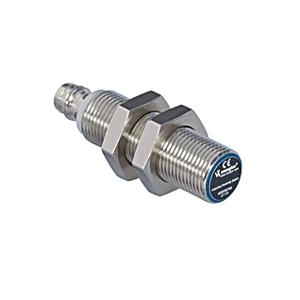

Home Wenglor Inductive Sensor Inductive Sensor Series IB040BM46VB8 Wenglor IB040BM46VB8 Inductive Sensor The Wenglor IB040BM46VB8 Inductive Sensor offers 4 mm switching distance, 10 ... 30 V DC supply voltage, -25 ... 80 °C temperature range, M8 × 1; 3-pin connection. Manufactured by Wenglor under the Wenglor Inductive Sensor category, this model belongs to the Wenglor IL Series .
Brand Wenglor Product Type Inductive Sensor Model Number IB040BM46VB8
Wenglor IB040BM46VB8 Inductive Sensor – Technical Specifications Specification Value Switching Distance 4 mm Correction Factors Stainless Steel V2A/CuZn/Al 0,77/0,50/0,48 Mounting Flush Mounting A/B/C/D in mm 0/12/12/0 Switching Hysteresis < 15 % Supply Voltage 10 ... 30 V DC Current Consumption (Ub = 24 V) < 6 mA Switching Frequency 700 Hz Temperature Drift < 10 % Temperature Range -25 ... 80 °C Switching Output Voltage Drop < 2.5 V Switching Output/Switching Current 200 mA Residual Current Switching Output < 100 µA Short Circuit Protection yes Reverse Polarity Protection yes Overload Protection yes Protection Class III Housing Material Brass, nickel-plated Full Encapsulation yes Degree of Protection IP67 Connection M8 × 1; 3-pin Weight 11 g MTTFd (EN ISO 13849-1) 5,870.82 a Packaging unit 1 Piece PNP NO yes
