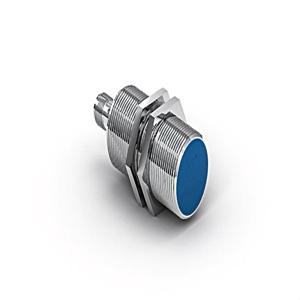

Home Wenglor Inductive Sensor Inductive Sensor Series I30N006 Wenglor I30N006 Inductive Sensor The Wenglor I30N006 Inductive Sensor offers 10 mm switching distance, 10 ... 30 V DC supply voltage, -40 ... 80 °C temperature range, M12 × 1; 3-pin connection. Manufactured by Wenglor under the Wenglor Inductive Sensor category, this model belongs to the Wenglor IL Series .
Brand Wenglor Product Type Inductive Sensor Model Number I30N006
Wenglor I30N006 Inductive Sensor – Technical Specifications Specification Value Switching Distance 10 mm Correction Factors Stainless Steel V2A/CuZn/Al 1,18/0,5/0,46 Mounting Flush Mounting A/B/C/D in mm 0/20/30/0 Switching Hysteresis < 10 % Supply Voltage 10 ... 30 V DC Current Consumption (Ub = 24 V) < 10 mA Switching Frequency 580 Hz Temperature Drift < 10 % Temperature Range -40 ... 80 °C Switching Output Voltage Drop < 1 V Switching Output/Switching Current 150 mA Residual Current Switching Output < 100 µA Short Circuit Protection yes Reverse Polarity Protection yes Overload Protection yes Protection Class III Housing Material Brass, nickel-plated Sensing face Plastic, PBT Degree of Protection IP67 Connection M12 × 1; 3-pin Weight 147 g MTTFd (EN ISO 13849-1) 3,706.54 a Packaging unit 1 Piece Mounting B1 in mm 0...10 Error Indicator yes
