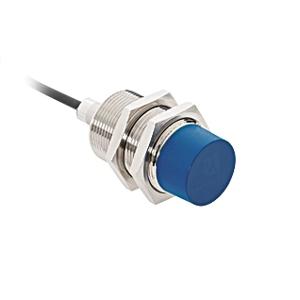

Home Wenglor Inductive Sensor Inductive Sensor Series I30H016 Wenglor I30H016 Inductive Sensor The Wenglor I30H016 Inductive Sensor offers 35 mm switching distance, Non-flush mounting, 10 ... 30 V DC supply voltage, 140 Hz switching frequency. Manufactured by Wenglor under the Wenglor Inductive Sensor category, this model belongs to the Wenglor Inductive Series .
Brand Wenglor Product Type Inductive Sensor Model Number I30H016
Wenglor I30H016 Inductive Sensor โ Technical Specifications Specification Value Switching Distance 35 mm Correction Factors Stainless Steel V2A/CuZn/Al 1,00/0,42/0,39 Mounting Non-flush Mounting A/B/C/D in mm 55/82/105/35 Mounting B1 in mm 0...80 Switching Hysteresis < 10 % Supply Voltage 10 ... 30 V DC Current Consumption (Ub = 24 V) < 12 mA Switching Frequency 140 Hz Temperature Drift < 10 % Temperature Range -40 ... 80 ยฐC Switching Output Voltage Drop < 1 V Switching Output/Switching Current 150 mA Residual Current Switching Output < 100 ยตA Short Circuit Protection yes Reverse Polarity Protection yes Overload Protection yes Protection Class III Housing Material Brass, nickel-plated Sensing face Plastic, PBT Degree of Protection IP67 Connection Cable; 4-wire Cable Length (L) 2 m Cable Jacket Material PVC Weight 181 g MTTFd (EN ISO 13849-1) 3,706.54 a Packaging unit 1 Piece Error Indicator yes Circuit NC
NC+NO
NO NPN NO yes PNP NC yes
