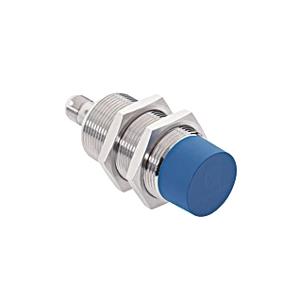

Home Wenglor Inductive Sensor Inductive Series I30H014 Wenglor I30H014 Inductive Sensor The Wenglor I30H014 Inductive Sensor offers 35 mm switching distance, Non-flush mounting, 10 ... 30 V DC supply voltage, 330 Hz switching frequency. Manufactured by Wenglor under the Wenglor Inductive Sensor category, this model belongs to the Wenglor Inductive Series .
Brand Wenglor Product Type Inductive Sensor Model Number I30H014
Wenglor I30H014 Inductive Sensor – Technical Specifications Specification Value Switching Distance 35 mm Standard Target 105 × 105 mm Correction Factors Stainless Steel V2A/CuZn/Al 1,00/0,42/0,39 Mounting Non-flush Mounting A/B/C/D in mm 55/82/105/35 Mounting B1 in mm 0...80 Switching Hysteresis < 10 % Supply Voltage 10 ... 30 V DC Supply Voltage with IO-Link 18 ... 30 V DC Current Consumption (Ub = 24 V) < 15 mA Switching Frequency 330 Hz Temperature Drift < 10 % Temperature Range -40 ... 80 °C Switching Output Voltage Drop < 1 V Switching Output/Switching Current 150 mA Residual Current Switching Output < 100 µA Short Circuit Protection yes Overload Protection yes Reverse Polarity Protection yes Interface IO-Link V1.1 Protection Class III Housing Material Brass, nickel-plated Degree of Protection IP67 Connection M12 × 1; 4-pin Weight 139 g MTTFd (EN ISO 13849-1) 3,706.54 a Packaging unit 1 Piece Error Indicator yes Programmable switching distance 20/30/35 mm Programmable switching frequency yes IO-Link yes Programmable error output yes PNP NO yes Output Error Output
Push-pull
NPN
PNP Circuit NC
NC/NO
NO
