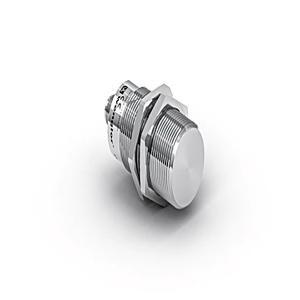

Home Wenglor Inductive Sensor Inductive Series I30G002 Wenglor I30G002 Inductive Sensor The Wenglor I30G002 Inductive Sensor offers 15 mm switching distance, Flush mounting, 10 ... 30 V DC supply voltage, M12 × 1; 4-pin connection. Manufactured by Wenglor under the Wenglor Inductive Sensor category, this model belongs to the Wenglor Inductive Series .
Brand Wenglor Product Type Inductive Sensor Model Number I30G002
Wenglor I30G002 Inductive Sensor – Technical Specifications Specification Value Switching Distance 15 mm Correction Factors Stainless Steel V2A/CuZn/Al 0,91/0,47/0,40 Mounting Flush Mounting A/B/C/D in mm 0/65/45/0 Mounting A/B/C/D (V2A) in mm 0/30/45/0 Mounting B1 in mm 0...20 Installation B1 (V2A) in mm 0...15 Switching Hysteresis < 10 % Supply Voltage 10 ... 30 V DC Supply Voltage with IO-Link 18 ... 30 V DC Current Consumption (Ub = 24 V) < 15 mA Switching Frequency 354 Hz Temperature Drift < 10 % Temperature Range -25 ... 70 °C Switching Output Voltage Drop < 1 V Switching Output/Switching Current 100 mA Residual Current Switching Output < 100 µA Short Circuit Protection yes Reverse Polarity Protection yes Overload Protection yes Interface IO-Link V1.1 Housing Material Stainless steel, V4A (1.4404 / 316L) Sensing face Stainless steel, V4A Degree of Protection IP67
IP68
IP69K Connection M12 × 1; 4-pin Torque max. 45 Nm Pressure Resistance Sensor Area 10 bar EX II 3D Ex tc IIIC T90° Dc yes EX II 3G Ex ic IIC T5 Gc yes Weight 104 g MTTFd (EN ISO 13849-1) 3,706.54 a Packaging unit 1 Piece Output NPN
PNP Circuit NC
NC+NO
NO
inactive
Error output PNP NC, PNP NO yes Protection Class III Full Encapsulation yes Stock Type X
