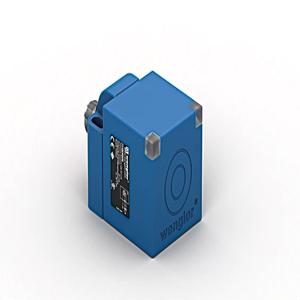

Home Wenglor Inductive Sensor Inductive Sensor Series I1QH001 Wenglor I1QH001 Inductive Sensor The Wenglor I1QH001 Inductive Sensor offers 20 mm switching distance, Flush mounting, 10 ... 30 V DC supply voltage, 460 Hz switching frequency. Manufactured by Wenglor under the Wenglor Inductive Sensor category, this model belongs to the Wenglor Inductive Series .
Brand Wenglor Product Type Inductive Sensor Model Number I1QH001
Wenglor I1QH001 Inductive Sensor – Technical Specifications Specification Value Switching Distance 20 mm Correction Factors Stainless Steel V2A/CuZn/Al 0,83/0,32/0,31 Mounting Flush Mounting A/B/C/D in mm 0/40/60/0 Mounting B1 in mm 6...35 Switching Hysteresis < 10 % Supply Voltage 10 ... 30 V DC Current Consumption (Ub = 24 V) < 10 mA Switching Frequency 460 Hz Temperature Drift < 10 % Temperature Range -40 ... 80 °C Switching Output Voltage Drop < 1 V Switching Output/Switching Current 150 mA Residual Current Switching Output < 100 µA Short Circuit Protection yes Reverse Polarity Protection yes Overload Protection yes Protection Class III Housing Material Plastic, ABS Sensing face Plastic, PBT Degree of Protection IP67 Connection M12 × 1; 4-pin Weight 102 g MTTFd (EN ISO 13849-1) 3,706.54 a Packaging unit 1 Piece Error Indicator yes PNP NO yes
