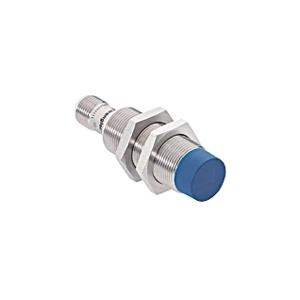

Home Wenglor Inductive Sensor Inductive Series I18H014 Wenglor I18H014 Inductive Sensor The Wenglor I18H014 Inductive Sensor offers 20 mm switching distance, Non-flush mounting, 10 ... 30 V DC supply voltage, 500 Hz switching frequency. Manufactured by Wenglor under the Wenglor Inductive Sensor category, this model belongs to the Wenglor Inductive Series .
Brand Wenglor Product Type Inductive Sensor Model Number I18H014
Wenglor I18H014 Inductive Sensor – Technical Specifications Specification Value Switching Distance 20 mm Standard Target 60 × 60 mm Correction Factors Stainless Steel V2A/CuZn/Al 0,92/0,47/0,46 Mounting Non-flush Mounting A/B/C/D in mm 24/60/60/20 Mounting B1 in mm 2...40 Switching Hysteresis < 10 % Supply Voltage 10 ... 30 V DC Supply Voltage with IO-Link 18 ... 30 V DC Current Consumption (Ub = 24 V) < 12 mA Switching Frequency 500 Hz Temperature Drift < 10 % Temperature Range -40 ... 80 °C Switching Output Voltage Drop < 1 V Switching Output/Switching Current 150 mA Residual Current Switching Output < 100 µA Short Circuit Protection yes Overload Protection yes Reverse Polarity Protection yes Interface IO-Link V1.1 Protection Class III Housing Material Brass, nickel-plated Degree of Protection IP67 Connection M12 × 1; 4-pin Weight 33 g MTTFd (EN ISO 13849-1) 3,706.54 a Packaging unit 1 Piece Error Indicator yes Programmable switching distance 12/15/20 mm Programmable switching frequency yes IO-Link yes Programmable error output yes PNP NO yes Output Error Output
Push-pull
NPN
PNP Circuit NC
NC/NO
NO
