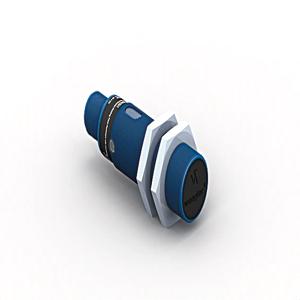

Home Wenglor Inductive Sensor Inductive Series I18A001 Wenglor I18A001 Inductive Sensor The Wenglor I18A001 Inductive Sensor offers 8 mm switching distance, Flush mounting, 10 ... 30 V DC supply voltage, M12 × 1; 4-pin connection. Manufactured by Wenglor under the Wenglor Inductive Sensor category, this model belongs to the Wenglor Inductive Series .
Brand Wenglor Product Type Inductive Sensor Model Number I18A001
Wenglor I18A001 Inductive Sensor – Technical Specifications Specification Value Switching Distance 8 mm Correction Factors Stainless Steel V2A/CuZn/Al 1,06/1,07/1,07 Mounting Flush Mounting A/B/C/D in mm 0/5/24/0 Switching Hysteresis < 15 % Supply Voltage 10 ... 30 V DC Current Consumption (Ub = 24 V) < 15 mA Switching Frequency 3,500 Hz Temperature Drift (-25 °C < Tu < 60 °C) 10 % Temperature Drift (Tu < -25 °C, Tu > 60 °C) 20 % Temperature Range -40 ... 80 °C Switching Output Voltage Drop < 2.5 V Switching Output/Switching Current 200 mA Resistant to Magnetic Fields 200 mT Short Circuit Protection yes Reverse Polarity Protection yes Overload Protection yes Protection Class II Protective Insulation, Rated Voltage 100 V Housing Material PTFE
Brass, nickel-plated Sensing face Plastic, PBT Welding Field Resistant yes Full Encapsulation yes Degree of Protection IP67 Connection M12 × 1; 4-pin Weight 52 g MTTFd (EN ISO 13849-1) 2,169.26 a Packaging unit 1 Piece Error Indicator yes PNP NC, PNP NO yes Circuit NC
NC+NO
NO
