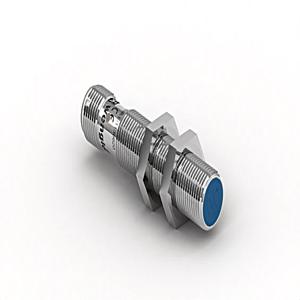

Home Wenglor Inductive Sensor Inductive Sensor Series I12N002 Wenglor I12N002 Inductive Sensor The Wenglor I12N002 Inductive Sensor offers 2 mm switching distance, 10 ... 30 V DC supply voltage, -40 ... 80 °C temperature range, M12 × 1; 3-pin connection. Manufactured by Wenglor under the Wenglor Inductive Sensor category, this model belongs to the Wenglor IL Series .
Brand Wenglor Product Type Inductive Sensor Model Number I12N002
Wenglor I12N002 Inductive Sensor – Technical Specifications Specification Value Switching Distance 2 mm Correction Factors Stainless Steel V2A/CuZn/Al 1,13/0,64/0,57 Mounting Flush Mounting A/B/C/D in mm 0/8/6/0 Switching Hysteresis < 10 % Supply Voltage 10 ... 30 V DC Current Consumption (Ub = 24 V) < 6 mA Switching Frequency 1,180 Hz Temperature Drift < 10 % Temperature Range -40 ... 80 °C Switching Output Voltage Drop < 1 V Switching Output/Switching Current 150 mA Residual Current Switching Output < 100 µA Short Circuit Protection yes Reverse Polarity Protection yes Overload Protection yes Protection Class III Housing Material Brass, nickel-plated Sensing face Plastic, PBT Degree of Protection IP67 Connection M12 × 1; 3-pin Weight 38 g MTTFd (EN ISO 13849-1) 3,706.54 a Packaging unit 1 Piece Mounting B1 in mm 0...1 Error Indicator yes
