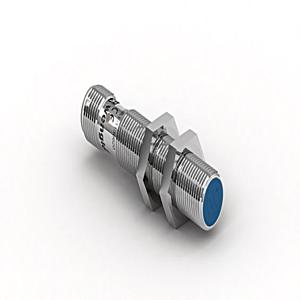

Home Wenglor Inductive Sensor Inductive Sensor Series I12H059 Wenglor I12H059 Inductive Sensor The Wenglor I12H059 Inductive Sensor offers 4 mm switching distance, Flush mounting, 10 ... 30 V DC supply voltage, 1,150 Hz switching frequency. Manufactured by Wenglor under the Wenglor Inductive Sensor category, this model belongs to the Wenglor Inductive Series .
Brand Wenglor Product Type Inductive Sensor Model Number I12H059
Wenglor I12H059 Inductive Sensor – Technical Specifications Specification Value Switching Distance 4 mm Correction Factors Stainless Steel V2A/CuZn/Al 1,02/0,52/0,50 Mounting Flush Mounting A/B/C/D in mm 0/8/12/0 Mounting B1 in mm 0...2 Switching Hysteresis < 10 % Supply Voltage 10 ... 30 V DC Current Consumption (Ub = 24 V) < 6 mA Switching Frequency 1,150 Hz Temperature Drift < 10 % Temperature Range -40 ... 80 °C Switching Output Voltage Drop < 1 V Switching Output/Switching Current 150 mA Residual Current Switching Output < 100 µA Short Circuit Protection yes Reverse Polarity Protection yes Overload Protection yes Protection Class III Housing Material Brass, nickel-plated Sensing face Plastic, PBT Degree of Protection IP67 Connection M12 × 1; 3-pin Weight 29 g MTTFd (EN ISO 13849-1) 3,706.54 a Packaging unit 1 Piece Error Indicator yes NPN NC yes
