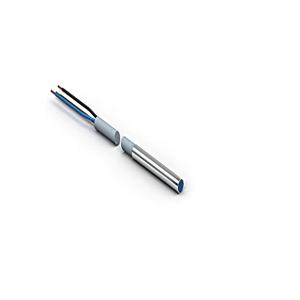

Home Wenglor Inductive Sensor Inductive Sensor Series I03H001 Wenglor I03H001 Inductive Sensor The Wenglor I03H001 Inductive Sensor offers 1 mm switching distance, Flush mounting, 10 ... 30 V DC supply voltage, 3,000 Hz switching frequency. Manufactured by Wenglor under the Wenglor Inductive Sensor category, this model belongs to the Wenglor Inductive Series .
Brand Wenglor Product Type Inductive Sensor Model Number I03H001
Wenglor I03H001 Inductive Sensor – Technical Specifications Specification Value Switching Distance 1 mm Correction Factors Stainless Steel V2A/CuZn/Al 0,80/0,60/0,50 Mounting Flush Mounting A/B/C/D in mm 1/2/3/0 Switching Hysteresis < 10 % Supply Voltage 10 ... 30 V DC Current Consumption (Ub = 24 V) ≤ 10 mA Switching Frequency 3,000 Hz Temperature Drift ≤ 10 % Temperature Range -25 ... 70 °C Switching Output Voltage Drop < 2 V Switching Output/Switching Current ≤ 100 mA Residual Current Switching Output ≤ 0.1 µA Short Circuit Protection yes Reverse Polarity Protection yes Overload Protection yes Protection Class III Housing Material Stainless Steel V2A
Plastic, POM Degree of Protection IP67 Connection Cable; 3-wire Cable Length (L) 2 m Cable Jacket Material Plastic, PUR Weight 16 g MTTFd (EN ISO 13849-1) 3,110 a Packaging unit 1 Piece PNP NO yes
