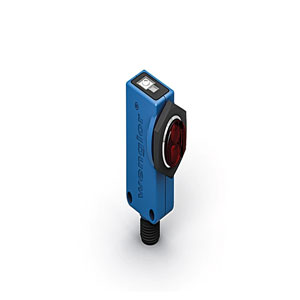

Wenglor HR12PCT2 120 mm Range Reflex Sensor
Wenglor HR12PCT2 is a 120 mm range reflex sensor with 10–30 V DC supply and 667 µs response time. The HR12PCT2 belongs to the PK Series and is part of the Wenglor Photoelectric Sensor range for industrial automation in India. It features 35–120 mm setting range, <5% switching hysteresis, red light source with 10,000 Lux ambient light tolerance, <30 mA current consumption at 24 V DC, PNP NO output, M12 × 1; 4-pin connection, plastic PBT and stainless steel V2A (1.4305 / 303) housing, IP67 protection, and 45 g weight.
| Brand | Wenglor |
| Product Type | Photoelectric Sensor |
| Model Number | HR12PCT2 |
Wenglor HR12PCT2 120 mm Range Reflex Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Range | 120 mm |
| Setting Range | 35 ... 120 mm |
| Switching Hysteresis | < 5 % |
| Light Source | Red Light |
| Max. Ambient Light | 10,000 Lux |
| Supply voltage | 10 ... 30 V DC |
| Supply voltage with IO Link | - |
| Current Consumption (Ub = 24 V) | < 30 mA |
| Switching Frequency | 750 Hz |
| Switching Frequency (interference-free mode) | - |
| Response time (interference-free mode) | - |
| Response Time | 667 µs |
| Temperature Range | -25 ... 60 °C |
| Switching Output Voltage Drop | < 2.5 V |
| Switching Output/Switching Current | 200 mA |
| Interface | - |
| Setting Method | Teach-In |
| Housing Material | Plastic, PBT Stainless steel, V2A (1.4305 / 303) |
| Connection | M12 × 1; 4-pin |
| Output | PNP NO |
| Circuit | NC NC/NO NO |
| Optic Cover | - |
| Degree of Protection | IP67 |
| Weight | 45 g |
The HR12PCT2 Wenglor 120 mm Range Reflex Sensor is designed for object detection up to 120 mm sensing range in industrial automation systems. It operates on 10–30 V DC supply and provides 667 µs response time with controlled switching behavior. As part of the PK Series, this model supports PNP NO output for defined signal control. The HR12PCT2 Wenglor 120 mm Range Reflex Sensor ensures consistent detection performance in machine-level applications.
In conveyors, packaging machines, assembly lines, and automated production equipment, the HR12PCT2 enables stable sensing within its 35–120 mm adjustable range. The red light source supports precise object detection, while the combined PBT and stainless steel V2A housing improves resistance to mechanical and environmental stress. With IP67 protection and M12 connectivity, it integrates into PLC-based control systems across Indian manufacturing facilities.
The HR12PCT2 from Wenglor maintains electrical efficiency with less than 30 mA current consumption at 24 V DC. As a PK Series device, it supports repeatable switching accuracy with hysteresis below 5%. The HR12PCT2 Wenglor 120 mm Range Reflex Sensor provides defined technical characteristics suitable for automation engineers requiring durable housing, stable response time, and reliable reflex sensing in industrial environments.
