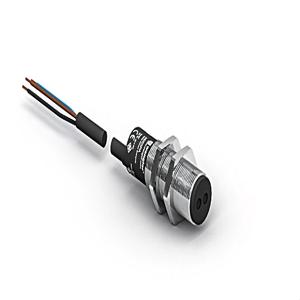

Wenglor HD03PA Photoelectric Sensor

The Wenglor HD03PA Photoelectric Sensor offers 30 mm range, 10 ... 30 V DC supply voltage, 1,500 Hz switching frequency, IP67 degree of protection. Manufactured by Wenglor under the Wenglor Photoelectric Sensor category, this model belongs to the Wenglor Reflex Series.

BrandWenglor
Product TypePhotoelectric Sensor
Model NumberHD03PA

Wenglor HD03PA Photoelectric Sensor – Technical Specifications

SpecificationValue
Range30 mm
Switching Hysteresis< 15 %
Light SourceInfrared Light
Supply Voltage10 ... 30 V DC
Current Consumption (Ub = 24 V)< 40 mA
Switching Frequency1,500 Hz
Response Time330 µs
Temperature Drift< 10 %
Temperature Range-25 ... 60 °C
Switching Output Voltage Drop< 2.5 V
Residual Current Switching Output< 50 µA
Housing MaterialBrass, nickel-plated
Degree of ProtectionIP67
ConnectionCable; 4-wire
Weight183 g
CircuitNC NC+NO NO
Opening Angle12 °
Cable Length (L)2 m
