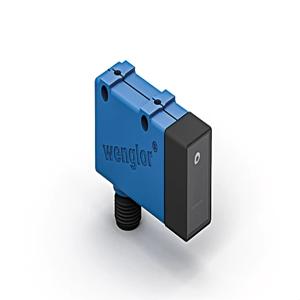

Home Wenglor Photoelectric Sensors Gloss Sensors Series GM04VC2 Wenglor GM04VC2 Photoelectric Sensor The Wenglor GM04VC2 Photoelectric Sensor offers 5 ... 40 mm working range, 650 nm wavelength, 10 ... 30 V DC supply voltage, 1,900 Hz switching frequency. Manufactured by Wenglor under the Wenglor Photoelectric Sensor category, this model belongs to the Wenglor Gloss Sensors Series .
Brand Wenglor Product Type Photoelectric Sensor Model Number GM04VC2
Wenglor GM04VC2 Photoelectric Sensor – Technical Specifications Specification Value Working Range 5 ... 40 mm Light Source Laser (red) Wavelength 650 nm Service Life (T = +25 °C) 100,000 h Laser Class (EN 60825-1) 2 Max. Ambient Light 10,000 Lux Light Spot Diameter see Table 1 Supply Voltage 10 ... 30 V DC Current Consumption (Ub = 24 V) < 20 mA Switching Frequency 1,900 Hz Response Time 263 µs Temperature Drift < 5 % Temperature Range -25 ... 60 °C Switching Output Voltage Drop < 2.5 V PNP Switching Output/Switching Current 200 mA Short Circuit Protection yes Reverse Polarity Protection yes Overload Protection yes Protection Class III FDA Accession Number 0820517-000 Setting Method Potentiometer Housing Material Plastic, ABS
Plastic, PBT Optic Cover Glass Full Encapsulation yes Degree of Protection IP67 Connection M12 × 1; 4-pin Weight 33 g Circuit NC
NC/NO
NO PNP NO/NC switchable yes
