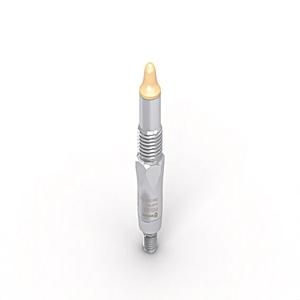

Home Wenglor Fluid Sensor FX Series FXSL003 Wenglor FXSL003 Fluid Sensor The Wenglor FXSL003 Fluid Sensor offers 8 ... 36 V DC supply voltage, IP67, IP69K degree of protection, M12 × 1; 4-pin connection, Push-pull, NPN, PNP output. Manufactured by Wenglor under the Wenglor Fluid Sensor category, this model belongs to the Wenglor FX Series .
Brand Wenglor Product Type Fluid Sensor Model Number FXSL003
Wenglor FXSL003 Fluid Sensor – Technical Specifications Specification Value Measuring principle Frequency sweep Measuring Range > DK 1.5 Medium Liquids, granulate, powder Response Time 0.04 s Media temperature TM (TU < 50 °C) -40 ... 115 °C** Media temperature TM brief (TU < 50 °C, t < 1 h) -40 ... 130 °C Ambient temperature -40 ... 85 °C Storage temperature -40 ... 85 °C Pressure Resistance 10 bar EMC DIN EN 61326 * Vibration resistance per DIN IEC 60068-2-6 1,6 mm p-p (2...25 Hz), 4 g (25...100 Hz) Supply Voltage 8 ... 36 V DC Current Consumption (Ub = 24 V) < 35 mA Number of Switching Outputs 2 Power-up Time < 3 s Switching Output/Switching Current 100 mA Switching Output Voltage Drop < 0.7 V Signal source Change of medium Leakage Current < 100 µA Short Circuit Protection yes Reverse Polarity Protection yes Interface IO-Link V1.1 Setting Method IO-Link Housing Material Stainless steel, V4A (1.4404/316L) Material in contact with media Stainless steel, V4A (1.4404 / 316L)
Plastic, PEEK Degree of Protection IP67, IP69K Connection M12 × 1; 4-pin Connector Plug Material Stainless Steel Process Connection G 1/2'' hygienic Weight 75 g MTTFd (EN ISO 13849-1) 686 a Attenuation (adjustable) 0 ... 10 s Selective fill-level measurement yes IO-Link yes Push-Pull yes Output Push-pull, NPN, PNP Circuit NC
NC/NO
NO Other parameters 2 switching points
