IR-DI16-N - Weintek Digital IO Module

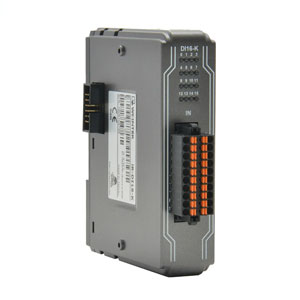

IR-DI16-N Weintek Digital IO Module
| Brand | Weintek |
| Product Type | IO Module |
| Product | IR-DI16-N |
Weintek Digital IO Module IR-DI16-N Technical Specifications:
| Specification | Value |
|---|
| Number of Inputs | 8 |
| Input Logic | Sink or Source |
| Current Consumption | 130mA@5VDC |
| HIGH Level Input Voltage | 15~28VDC |
| LOW Level Input Voltage | 0~5VDC |
| Response Time (OFF->ON / ON->OFF) | 5 ms / 1 ms |
| Input Impedance | 5.6K Ω |
| End of Input State | Red led lit Input State |
| Isolation | Optical Isolation |
| Number of Outputs | 8 |
| Output Type | Sink |
| Current Consumption | 130mA@5VDC |
| Output Voltage | 11~28VDC |
| Output Current | 0.5A per channel (Max 4A) |
| Response Time (OFF->ON / ON->OFF) | 300μs / 300μs |
| Isolation (Output) | Optical Isolation |
| PCB Coating | No |
| Enclosure | Plastic |
| Dimensions (W x H x D mm) | 27 x 109 x 81 mm |
| Mount | 35mm DIN rail mounting |
| Protection Structure | IP20 |
| Storage Temperature | -20° ~ 70°C |
| Operating Temperature | 0° ~ 55°C |
| Relative Humidity | 10% ~ 90% (non-condensing) |
| Altitude (Air Pressure) | Below 3000 m |
| Weight | Approx. 0.12 kg |
